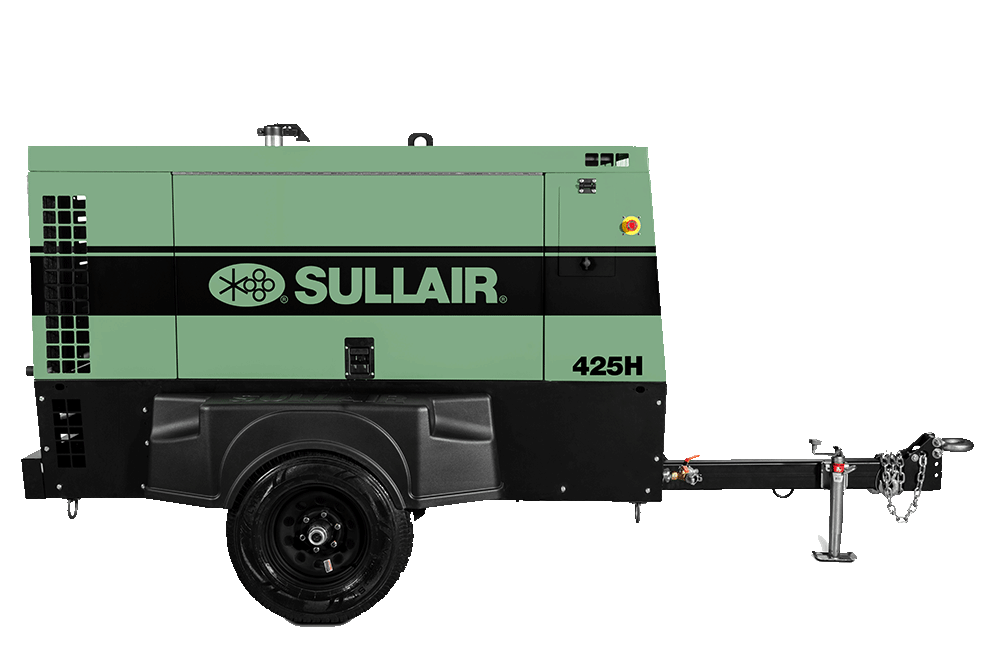

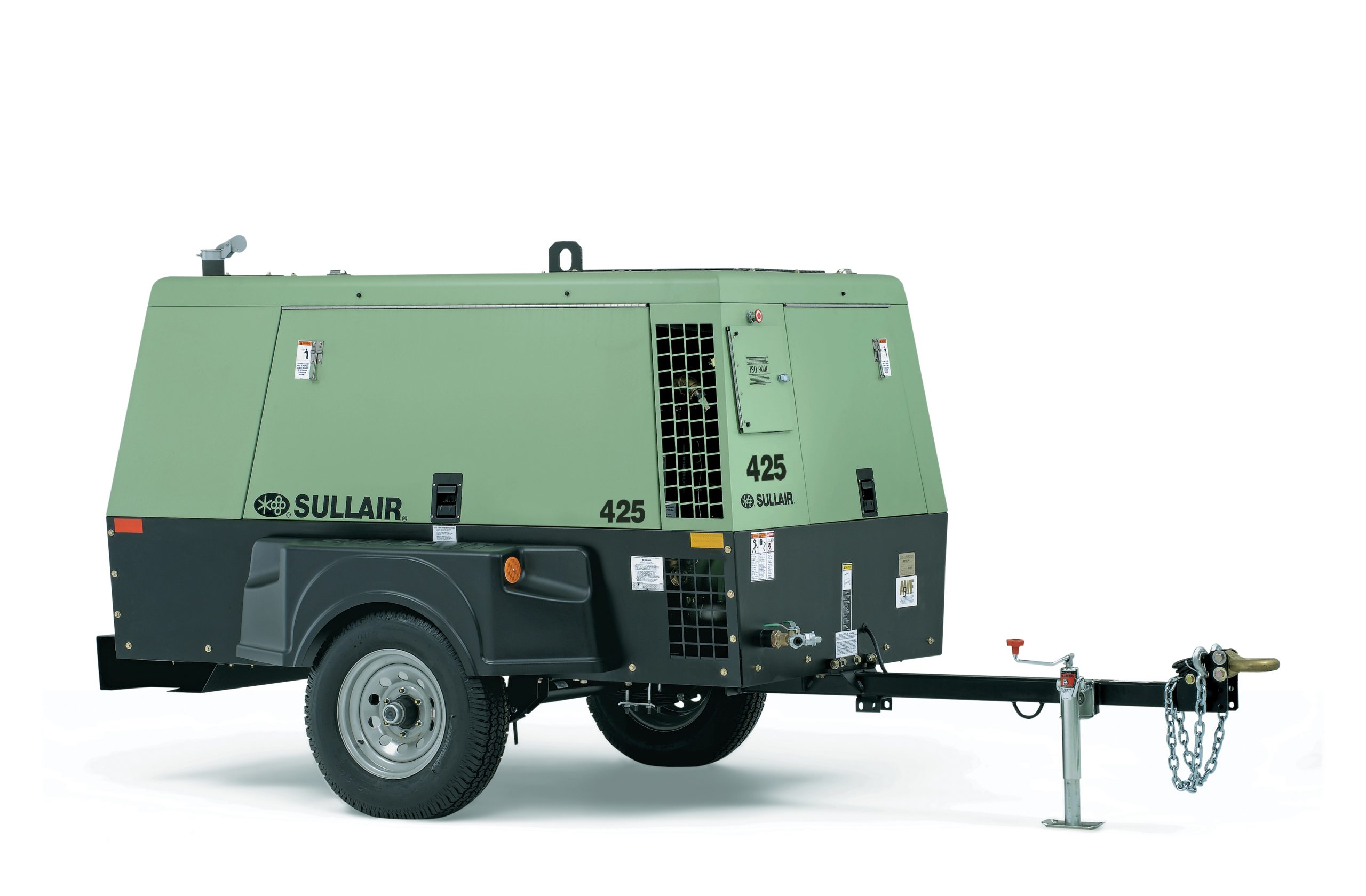

425 H – General Trading & Equipment Co.

425 H

425 H

425 H

134 hp

Horsepower

4,010 mm

Length

2,000 kg

Machine Weight

Request Price View Product Specifications

Product Specifications for 425 H

Specifications

Downloads

Contact us for More Details

425 H Key Specifications

Horsepower

134 hp

Length

4,010 mm

Machine Weight

2,000 kg

Engine

Horsepower

134 hp

Manufacturer

DONGFENG CUMMINS

Model

6BT5.9-C

Full-load/no-load speed rpm

2,250/1,600

Displacement

5.9 L (360 in³)

Coolant capacity

24 L (6.3 U.S.gal)

Oil capacity

Max. 14.2 L (3.75 U.S.GAL), Min. 12.3 L (3.25 U.S. gal)

Fuel tank capacity

200 L (52.8 U.S. gal)

Electric system operating voltage

24V

Rated capacity of battery

180 Ah/ea.

Performance

Nominal volume capacity m³/min CFM)

12.0 (425)

Length

4,010 mm

Rated discharge pressure bar (psi)

6.9 (100)

Working pressure range bar

5.5-6.9

Machine Weight

2,000 kg

Lx W x H mm (DPQ/DLQ)

4,010x1,992×1,973/2,696×1,485×1,597

Track width mm (in)

1,746 (68.8)

Tire specification

7.50-16-14PR

Tire pressure kPa

630-700

Max. working altitude

3,048 m (10,000 ft)

Compressor

Fluid capacity L

26

Specification of air supply valve

1-Rp 1/2, 1-Rp 3/4, 1-Rp1 1/4

EN CHN 375 400 425 DC (3)
