Product Overview
Unmatched Power for Industrial Cleaning
“The Tennant 800 Industrial Sweeper is engineered to tackle the toughest cleaning challenges in industrial environments. Its robust design and advanced features ensure superior performance and reliability.
– Rugged steel T-beam superstructure
– Quad filtering system for dust control
– Multi-level dump hopper
– Deluxe suspension operator seat”
The 800 sweeper features a rugged steel T-beam superstructure and bend-resistant steel back wheel bracket, ensuring consistent performance in demanding industrial settings.

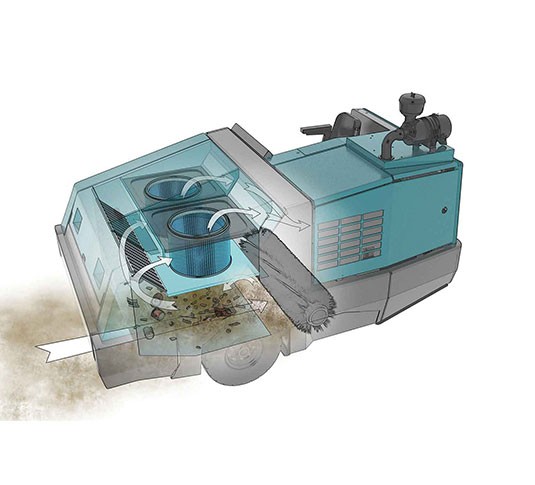

The quad filtering system captures virtually all airborne dust, with an optional HEPA filter that collects particles as small as 0.3 microns, enhancing air quality and operator safety.
Designed for ease of use, the 800 includes a deluxe suspension operator seat and power steering with tilt wheel, providing comfort during extended cleaning sessions.

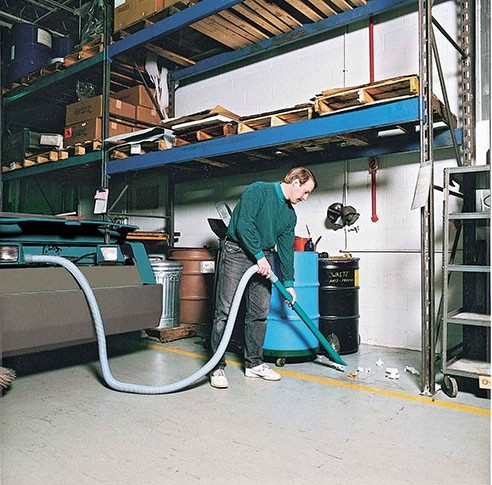

The optional vacuum wand extends the cleaning reach, allowing the machine to handle a wider range of applications and ensuring thorough cleaning in various environments.
The Thermo-Sentry temperature sensor monitors the hopper, automatically shutting down the vacuum in dangerously high temperatures to prevent damage and ensure safety.
Debris hopper: Dump height | Dump reach
1.830 mm | 510 mmHorsepower
63 hpMachine Weight
2948 kgCleaning Path: Single side brush | Dual side brush
1.680 mm | 2.100 mMain brush: length (tubular) | lift | change
1.270 mm | Hydraulic | No-toolSide broom diameter
660 mmDebris hopper: Volume capacity
850LDebris hopper: Dump height | Dump reach
1.830 mm | 510 mmFilter system (quad stage, to 4 microns) Stage 1
Debris deflectorStage 2
Perma-Filter™Stage 3
Wrap-around pre-screenStage 4
18 m2dual canisterVacuum fan speed | diameter
8.500 rpm | 240 mmHEPA Filtration (Optional)
8.500 rpm | 240 mm Optional) 0.3 Microns @ 99.97% efficiencyPropel speed forward (variable to)
16,0 km/hPropel speed reverse (variable to)
7,3 km/hHorsepower
63 hpEngine-gasoline: Gross Intermittent Power* | Tennant Governed Power
47,1 kw @2800 rpm | 42,0 kw @2400 rpmEngine-diesel, 4i***: Gross Intermittent Power* | Tennant Governed Power
41,7 kW @2600 rpm | 41,0 kW @2400 rpmLength
3.050 mmWidth
1.780 mmHeight: with overhead guard | without overhead guard
2.100 mm | 1.330 mmMachine Weight
2948 kgMinimum aisle turn
1.780 mm
