825 H – General Trading & Equipment Co.

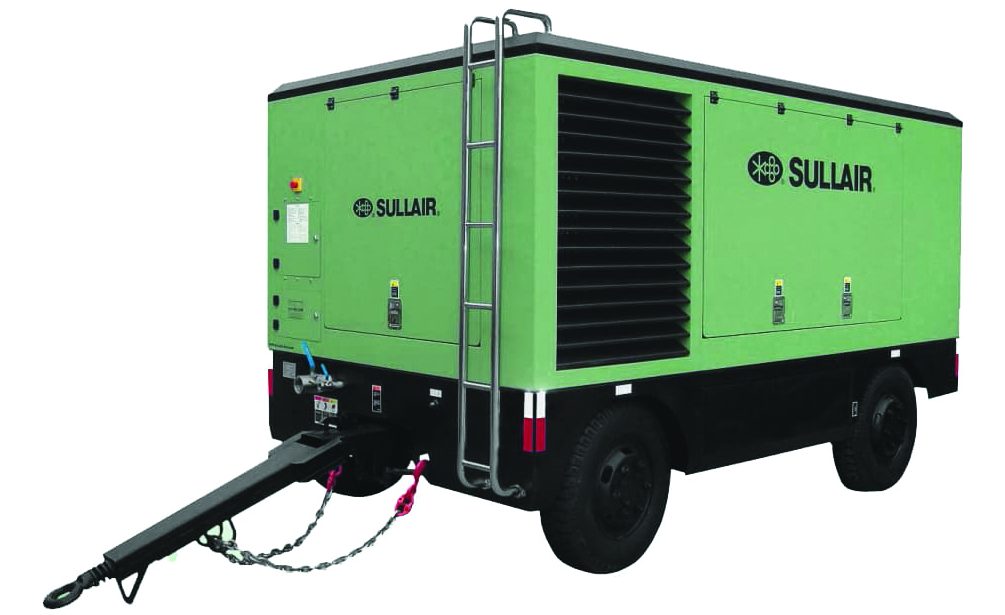

825 H

825 H

280 hp

Horsepower

4500 kg

Working Weight

5969

Length

Request Price View Product Specifications

Product Specifications for 825 H

Specifications

Downloads

Contact us for More Details

825 H Key Specifications

Horsepower

280 hp

Working Weight

4500 kg

Length

5969

Performance

Actual Delivery

825

Rated Pressure

150

Pressure Range

58/150

Fuel Consumption at Full Load

11.3

Noise Level

85

Maximum Operating Altitude

13,780

ENGINE

Make & Model (Emissions Level)

DF Cummins QS B6.7-C260-34 (Stage III)

Operating Speed rpm

1950

Horsepower

280 hp

Displacement l (in³)

6.7 (409)

Cooling System Capacity l (gal)

9.4 (2.5)

Engine Oil Capacity l (qts)

12 (12)

Fuel Tank Capacity l (gal)

450 (119)

Electrical System Voltage

24

Battery Rating CCA

210

DWQ Package — Dual Axle Running Gear

Working Weight

4500 kg

Length

5969

Track Width mm (in)

2020 (79.5)

Max Towing Speed kph (mph)

20 (12.4)

Tire Pressure kPa (psi)

525 (76)

Tire Size

215/75R16C

DPQ Package — Single axle Running Gear

Weight kg (lbs)

4500 (9920)

Length x Width x Height mm (in)

5517 x 2211 x 2518 (217 x 87 x 99)

Track Width mm (in)

2000 (79)

Max Towing Speed kph (mph)

20 (12.4)

Tire Pressure kPa (psi)

850 (123)

Tire Size

215/75R17.5

DLQ PACKAGE — Less Running Gear

Working Weight kg (lbs)

4500 (9920)

Length x Width x Height mm (in)

3866 x 1760 x 2086 (152 x 69 x 82)

Sullair China Mid-Range Brochure_6
