Product Overview
Compact Precision for Tight Spaces

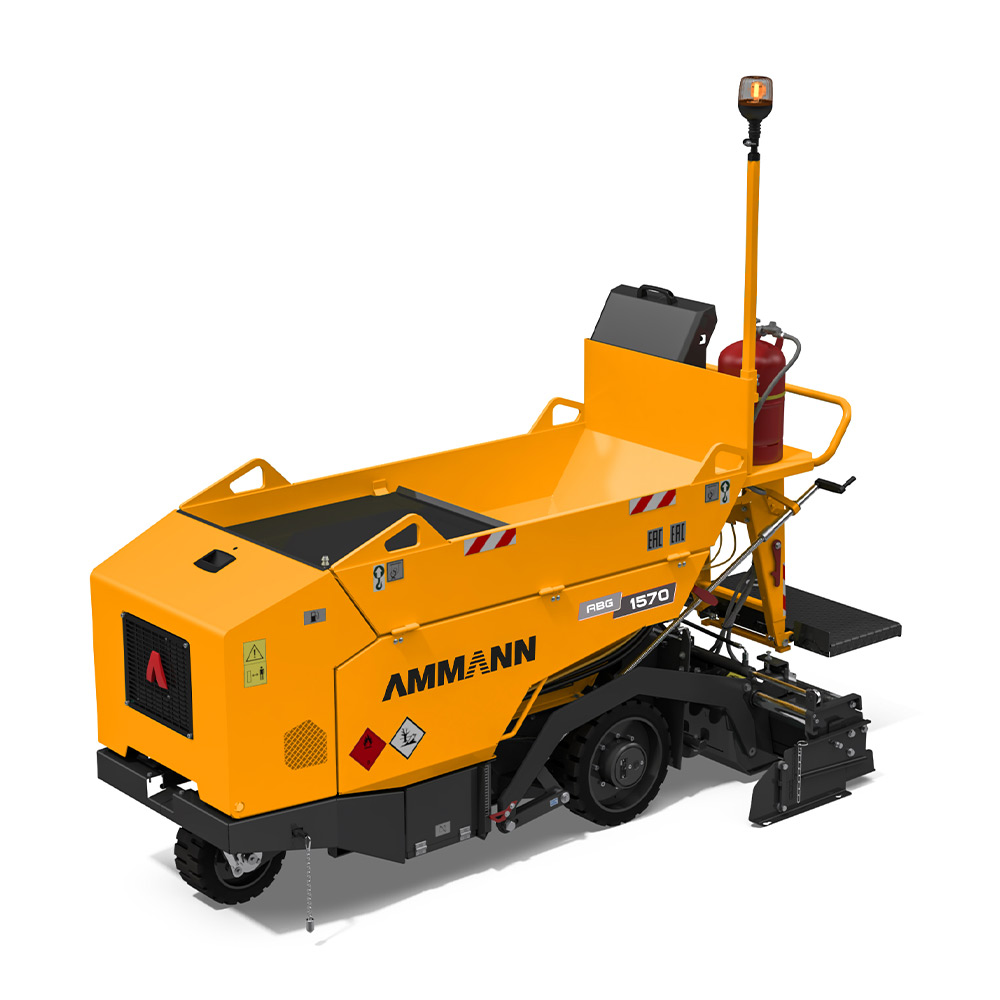

The Ammann ABG 1570 Mini-Paver excels in narrow environments, offering unmatched maneuverability and efficiency. Ideal for footpaths and cable installations, it ensures precise paving in confined areas.
– Narrow clearance width
– Ergonomic operator station
– Optimized material flow
– Enhanced traction
With a clearance width and a tight turning radius of 950mm, the ABG 1570 is perfect for navigating and paving in confined spaces, making it highly effective for small-scale projects and repairs.
The newly designed operator station features an intuitive dashboard and ergonomic steering wheel, ensuring ease of use and quick adaptation for new operators, enhancing overall productivity and comfort.
A large auger with a 120mm diameter optimizes material distribution in front of the screed. The unique flow divider system standardizes material flow, ensuring consistent paving quality.
The hydrostatic transmission, coupled with rear traction wheels and a maneuverable front wheel, provides reliable performance. Optional twin wheels enhance traction on challenging surfaces.
Designed for footpaths, cycle tracks, and trench closures, the ABG 1570 is versatile enough to handle layers on low weight-bearing surfaces and alleys, making it suitable for diverse environments.
Horsepower
10 hpEngine Speed
2200 r/minFuel Tank Capacity
5 LHorsepower
10 hpMANUFACTURER
HatzMODEL
1B50EEngine Speed
2200 r/minCOOLANT
Air coolingFuel Tank Capacity
5 LHYDRAULIC OIL TANK CAPACITY
11 lEXHAUST EMISSION
EU Stage V | US Tier 4FOPERATING WEIGHT
2778 lbMAX. OPERATING WEIGHT
2950 lbOUTPUT (THEORETICAL)* t/h [US t/h]
35 [38]MAT THICKNESS (MAX) mm [in]
5–100 [0.2–3.9]PAVING (MAX) m/min [ft/min]
25 [82]TRANSPORT (MAX) km/h [mph]
0–2.5 [0–1.6]NUMBER no.
2DIAMETER mm [in]
432 [17]WIDTH mm [in]
127 [5]STEERING TYPE
HydraulicNUMBER no.
1DIAMETER mm [in]
330 [13]WIDTH mm [in]
152 [6]HOPPER CAPACITY m³ [cu.ft]
0.6 [2]NUMBER OF CONVEYORS
One conveyor, reversible and automatic controlledAUGER
Automatic controlledOPERATING LENGTH
2865SHIPPING LENGTH
2550MACHINE WIDTH
1150MACHINE HEIGHT
1598HOPPER LENGTH
1668OPERATOR PLATFORM HEIGHT
432INTERNAL TURNING RADIUS
950STANDARD WORKING WIDTH mm [in]
800–1300 [31.5–51.2]+ REDUCTION PLATES (MIN) mm [in]
1650 [65]+ EXTENSIONS (MAX) mm [in]
250 [9.8]SCREED TYPE
SB Standard Optional with vibrationHEATING
Gas
