Product Overview
Unmatched Paving Precision and Efficiency

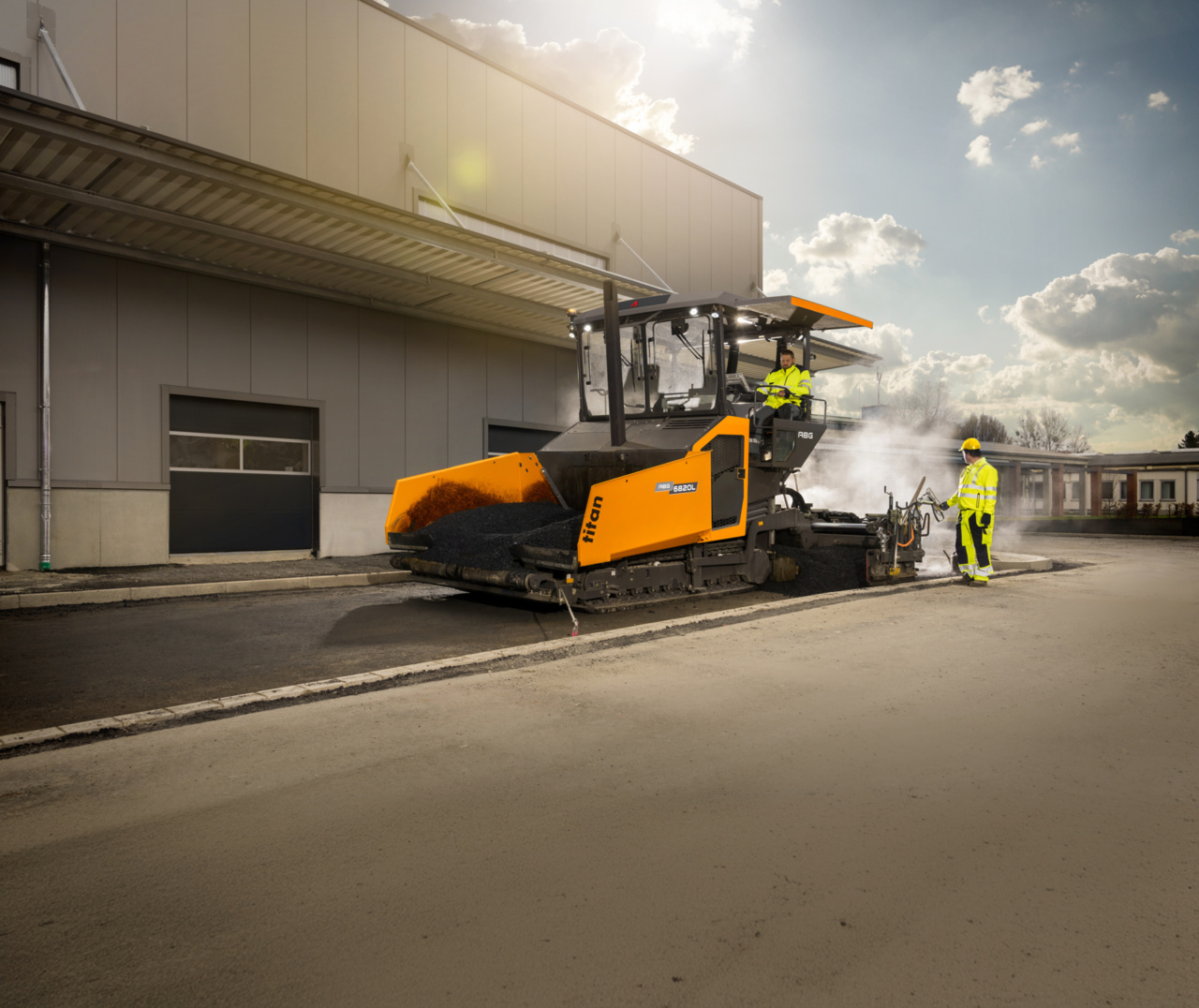

“Experience superior paving with the ABG 6820 and ABG 7820, designed for high-quality, consistent results. These machines offer intuitive control and long-lasting performance, making them ideal for demanding projects.
– Intuitive EPM3 control
– Superior screed technology
– Adaptive Eco Mode
– Robust Volvo engine”
The EPM3 system provides a bird’s eye view of the paver, ensuring intuitive control and consistent, high-quality paving. Transfer settings from job to job with ease, enhancing efficiency and precision.
Equipped with a Volvo (Deutz) engine, these pavers deliver high torque at low RPM, ensuring superior, long-lasting performance. The powertrain components are harmonized for high efficiency and reduced fuel consumption.
ABG screeds offer exceptional pavement quality, uniformity, and smoothness. Choose from a variety of single or double tamper screeds, designed for easy control and quick coupling for efficient operation.
Service Interval Manager alerts operators of required maintenance, while CareTrack provides advanced telematics. Easy service access from the platform ensures minimal downtime and optimal machine availability.
The Adaptive Eco Mode adjusts engine output to match demand, lowering noise and fuel consumption. This feature ensures efficient operation and environmental sustainability, enhancing overall performance.
Horsepower
190 hpEngine Speed
2000 r/minFuel Tank Capacity
250 LHorsepower
190 hpEngine Fuel
DieselMANUFACTURER
VolvoMODEL
D6E GAE3Engine Speed
2000 r/minCOOLANT
LiquidFuel Tank Capacity
250 LEXHAUST EMISSION
EU Stage IIIA / EPA Tier 3OUTPUT (THEORETICAL)* t/h
700MAT THICKNESS (MAX) mm
300PAVING (MAX) m/min
20TRANSPORT (MAX) km/h
3.3LENGTH mm
3000WIDTH (TRACK PLATES) mm
300HOPPER CAPACITY t
13.5NUMBER OF CONVEYORS
2CONVEYOR SPEED (MAX) m/min
23SPEED (MAX) 1/min
95DIAMETER mm

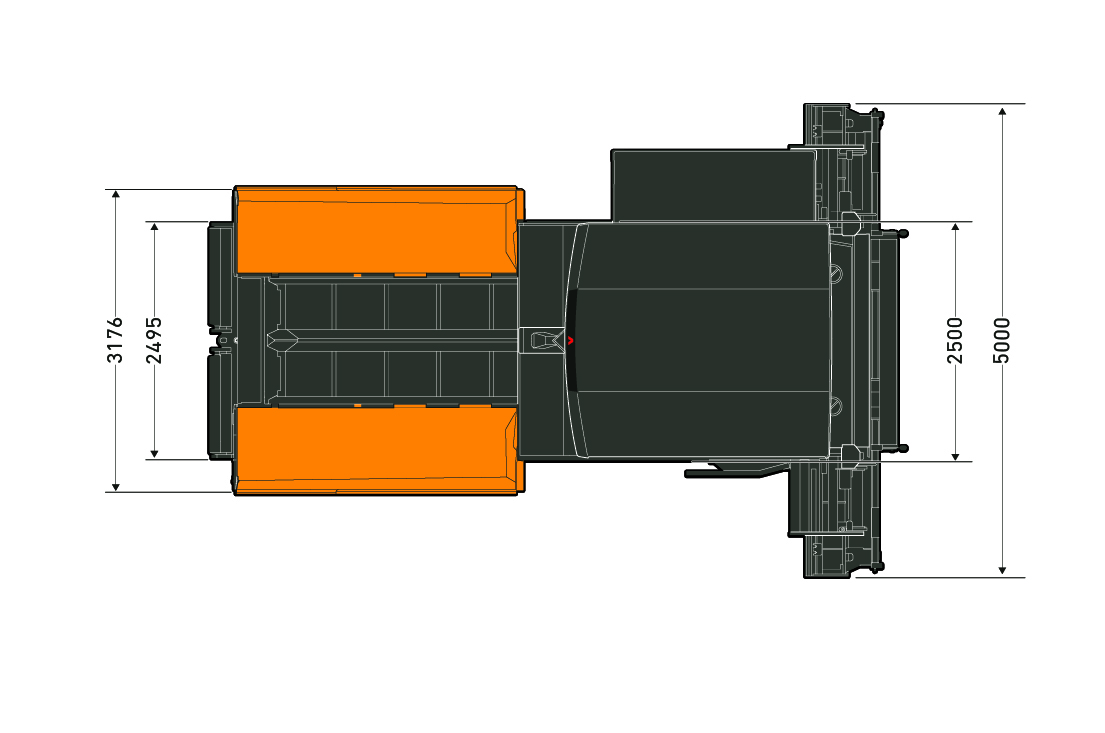

360LENGTH WITH VARIO SCREED (WALKWAY UP)
6120 mmWIDTH
2548 mmHEIGHT
3785 mmHEIGHT (TRANSPORT)
2934 mmTRACTOR UNIT
31305 lbTRACTOR UNIT + SCREED %
25LWA Guaranteed Sound Power Level, acc. to Directive 2000/14/EC
105 dBHAND-ARM VIBRATION according to ISO 5349:2001
<2.5 m/s²WHOLE BODY VIBRATION according to ISO 2631:1997
<0.5 m/s²BATTERY VOLTAGE
24 V
