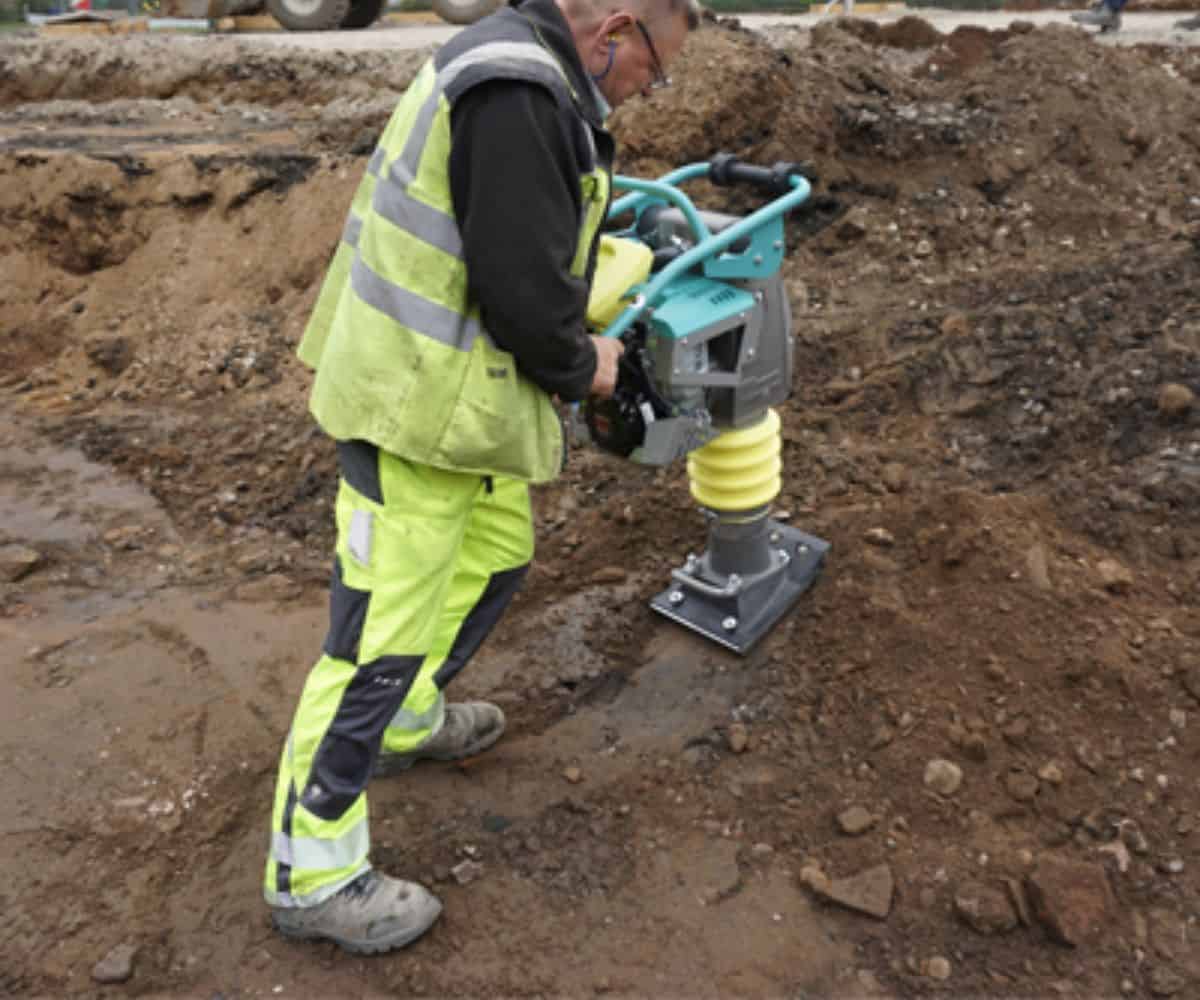

The low center of gravity enhances balance, preventing tipping and ensuring smooth guidance, even on challenging terrains. This feature makes the rammers easy to operate, maximizing productivity and safety.

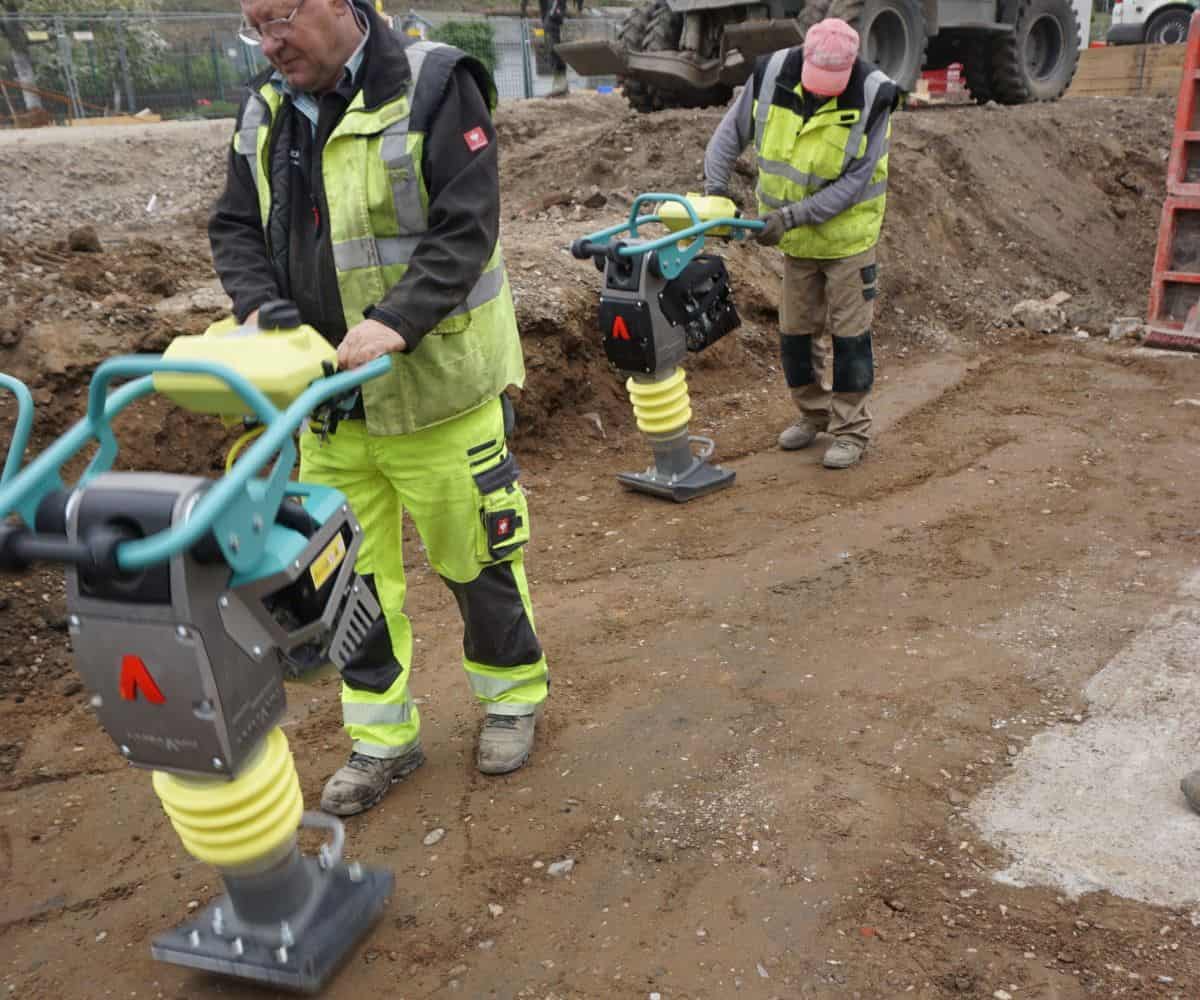

The vibration-isolated handle minimizes operator fatigue, allowing for extended use without discomfort. Its design enables easy handling from all sides, providing control in confined spaces.
The high-performance air filter is securely positioned for easy maintenance without tools. An optional cyclone pre-filter extends the filter’s life by five times, ensuring consistent performance.
With a standard 280 mm foot and seven shoe sizes, including an asymmetric option, the rammers can compact along walls and curbs efficiently. The wear-resistant shoe is easy to switch, enhancing versatility.

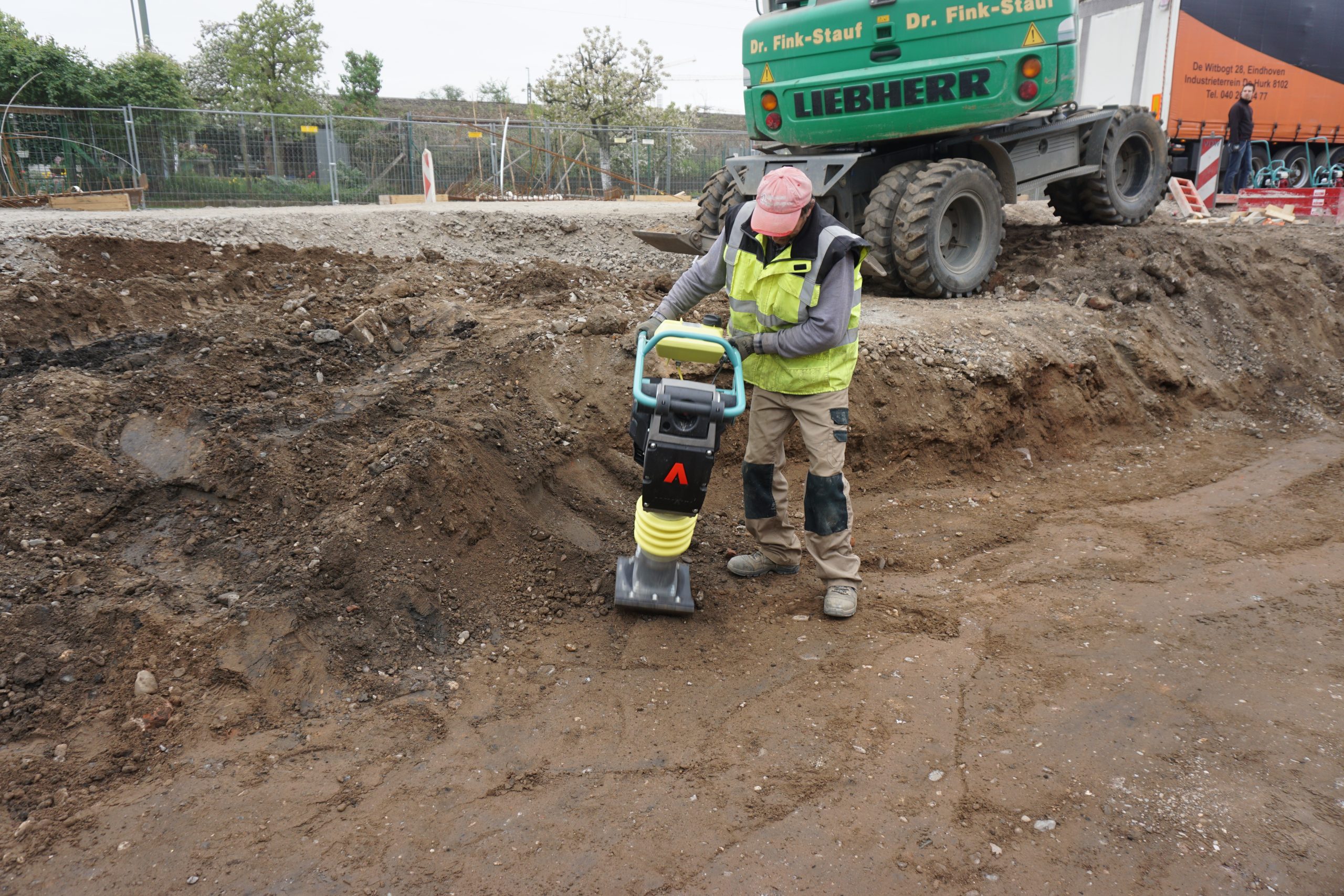

Designed for simplicity, the ATR rammers ensure productive and safe work, even for less experienced operators. Their balance and features make them ideal for various compaction tasks.
Horsepower
3 hpEngine Fuel
PetrolMachine Weight
68 kgHorsepower
3 hpEngine Fuel
PetrolENGINE
Honda GX 100Machine Weight
68 kgFOOT LENGTH
340 mm (13.4 in)FOOT WIDTH
280 mm (11 in)HANDLE LENGTH
710 mm (28 in)MACHINE HEIGHT
1020 mm (40.2 in)HANDLE WIDTH
355 mm (14 in)PERCUSSION RATE
680 bpmSTROKE HEIGHT
65 mm (2.6 in)CENTRIFUGAL FORCE
13 kN (2.9 lbf)SURFACE CAPACITY
225 m²/h (2422 ft²/h)MAX. COMPACTION PERFORMANCE *
50 cm (18 in)FUEL TANK CAPACITY
3.2 l (0.8 gal)TRAVEL SPEED
13.5 m / min (0.5 mph)OPTIONAL FOOT SIZES WIDTH
165–200–230– 330–400 mm (6.5–7.87–9.1–13–16 in)
