Product Overview
Revolutionize Your Cleaning Efficiency
“The M30 Ride-on Sweeper-scrubber combines sweeping and scrubbing in a single pass, enhancing productivity and reducing operational costs. Designed for high performance and operator comfort, it meets diverse cleaning needs.
– ec-H2OTM technology for efficient cleaning
– Pro-PanelTM LCD Touch Screen for easy control
– IRIS Asset Manager for optimal fleet management
– ES Extended Scrubbing for longer cleaning cycles”
The Touch-n-GoTM control module allows operators to access all settings without removing hands from the steering wheel, ensuring seamless operation and enhanced safety.

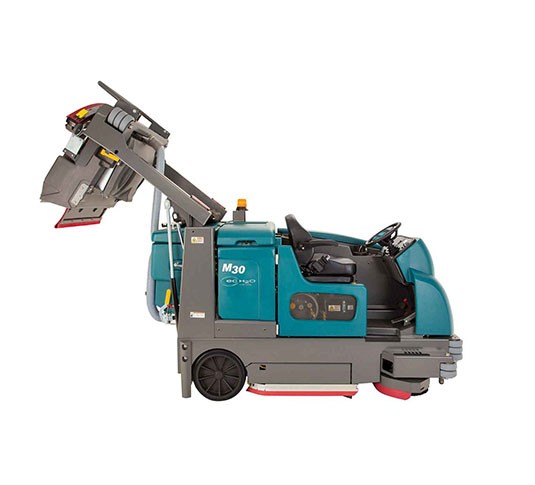

The multi-level hydraulic rear hopper eliminates manual debris handling, significantly increasing cleaning productivity and reducing operator fatigue.

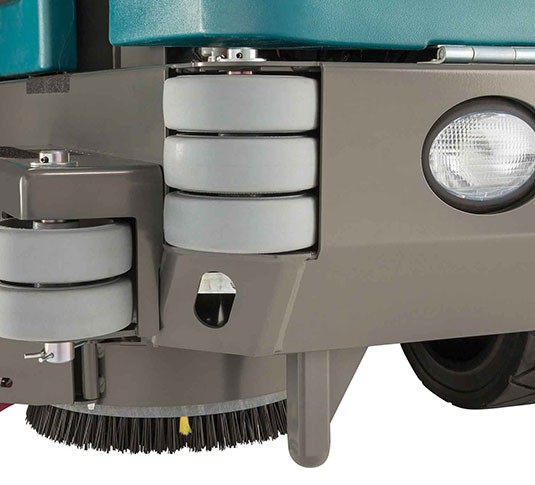

This squeegee system ensures superior water pickup and minimizes maintenance needs, thanks to its SmartReleaseTM technology that prevents damage.

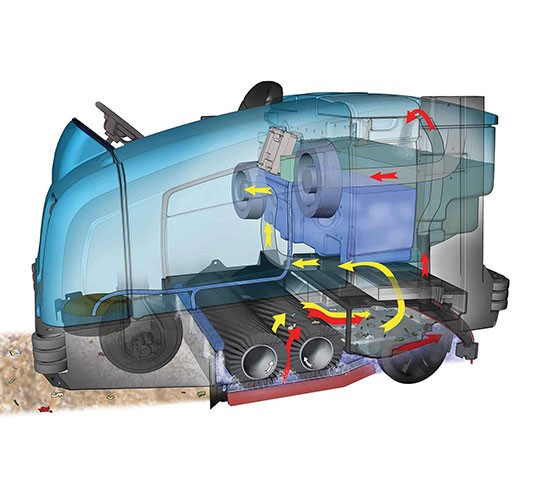

Achieve outstanding cleaning results in one pass with FloorSmart technology, which integrates sweeping and scrubbing for maximum efficiency.
Built with DuramerTM materials, the M30’s shrouding and tanks resist corrosion, extending the machine’s lifespan and maintaining performance.
Brush Speed
480 rpmRecovery Tank
360 LMachine Length
2,745 mmScrubbing Path (main scrub deck) | With scrubbing side brush | With sweeping side brush
48 in / 1,220 mm | 62 in / 1,575 mm | 64 in / 1,625 mmBrush Speed
480 rpmCylindrical brush down force (up to
425 lb / 193 kgDebris hopper
7 ft3 / 198 LSide brush speed
150 rpmSolution tank
75 gal / 284 LSolution capacity (ES®)
100 gal / 379 LRecovery Tank
360 LDebris capacity maximum
650 lb / 295 kPropel speed forward (variable to) | Propel speed reverse (variable to)
8 mph / 12.9 km/h | 3 mph / 4.8 km/hGradeability - Working | Transport
6.0˚ / 10% | 8.0˚ / 14%Engine - gasoline (2.0 L) - Gross intermittent power* | Tennant governed powe
50.7 hp / 37.8 kw @ 2800 rpm | 40.6 hp / 30.3 kw @ 2300 rpmEngine - LPG (2.0 L) - Gross intermittent power* | Tennant governed power
51.6 hp / 38.5 kw @ 2800 rpm | 42.4 hp / 31.6 kw @ 2300 rpmEngine - diesel turbo (1.5 L) - Gross intermittent power* | Tennant governed power
44.2 hp / 33.0 kW @3000 rpmFilter system
synthetic fiber panelFilter area
78 ft2 / 7.3 m2Dust filtration (to)
3 microns @ 99% efficiencyShaker mechanism (automatic)
timed, beater barMachine Length
2,745 mmWidth, body
58 in / 1,473 mmHeight (top of steering wheel)
58 in / 1,473 mmWith overhead guard
84 in / 2,135 mmWeight empty (no battery)
4,000 lb / 1,815 kgMinimum aisle turn
125 in / 3,175 mm
