Product Overview

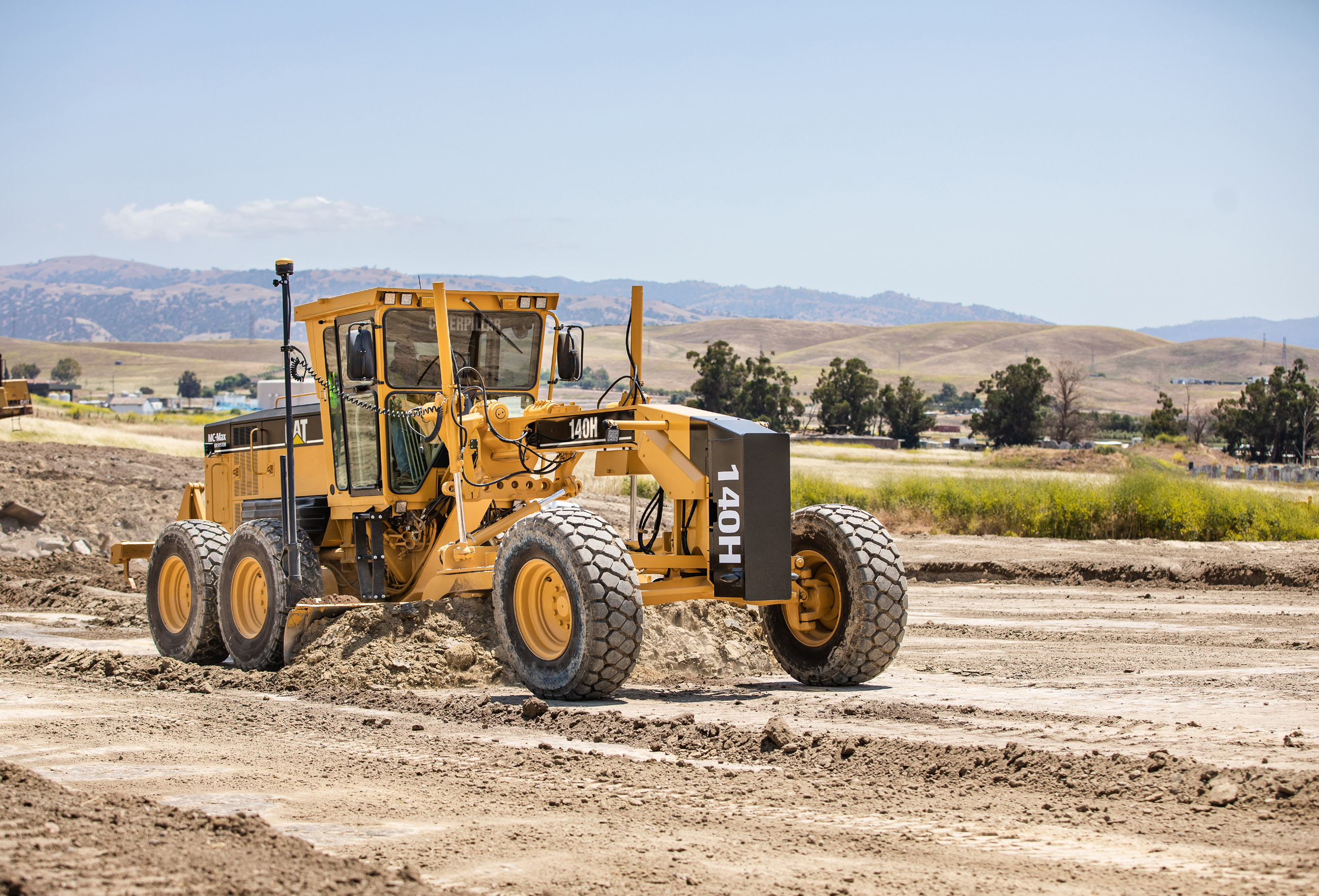

The Topcon MC-Max Grader is a high-performance machine control system designed to automate blade control and provide real-time 3D guidance for motor graders. Built on the modular MC-X platform, it enables high-speed grading with increased precision by utilizing advanced Inertial Measurement Units (IMUs) and flexible sensor configurations.
The Topcon GR-i3F is a high-precision integrated GNSS receiver designed for machine control, surveying, and construction applications. It supports multiple satellite constellations, including GPS, GLONASS, QZSS, and SBAS, to provide accurate, reliable positioning data
The bright and robust GX-Series delivers a brand-new experience for modern machine control.
The 3D-MC software on the GX-Series provides real-time position and project design information, with integrated grade indicator LEDs.
The MC-X3 control unit includes a radio to communicate with local base stations and a cell modem to communicate with 4G networks.

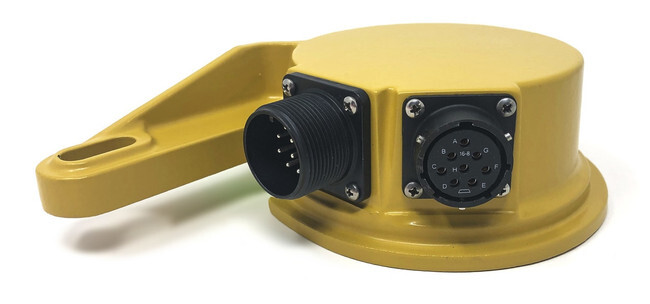

The RS-1 rotation sensor measures
the rotation of the blade.
The MC-Max excavator system utilizes
TS-i4 sensors. TS-i4 sensors are IMUs that are not affected when starting, stopping, or turning.
The addition of MC-Max and its flexible design boosts your motor grader to achieve greater precision, move more material, and reduce operator fatigue. Utilizing the latest Inertial Measurement Units (IMU) for pitch, roll, and heading determination, high-speed grading has never been easier. Topcon’s revolutionary 3D-MC machine control software provides operators with all the information needed to stay on grade and on track. With the addition of high-precision 2D or 3D positioning sensors, MC-Max can automatically control the blade or moldboard for elevation, slope, and side shift to accurately cut or spread material for a smooth finish. Compatible with all existing Topcon sensor technologies, both CAN and non-CAN systems, MC-Max equips graders with the tools needed to get the job done—whether it is simple flat grading or complex slope work. From laser detectors, sonic elevation sensors, and robotic total station prisms, to LPS and GNSS for increased coverage, along with Topcon’s patented Millimeter GPS solution for highly accurate 3D grading performance, MC-Max ensures every critical aspect of your jobsite is covered with maximum efficiency.
