Product Overview
Unmatched Versatility and Power
The Bobcat S450 Skid Steer Loader offers exceptional performance and versatility for various tasks. Its compact size and powerful engine make it ideal for construction and landscaping projects.
– High tipping load for stability
– Efficient diesel engine
– Advanced hydraulic system

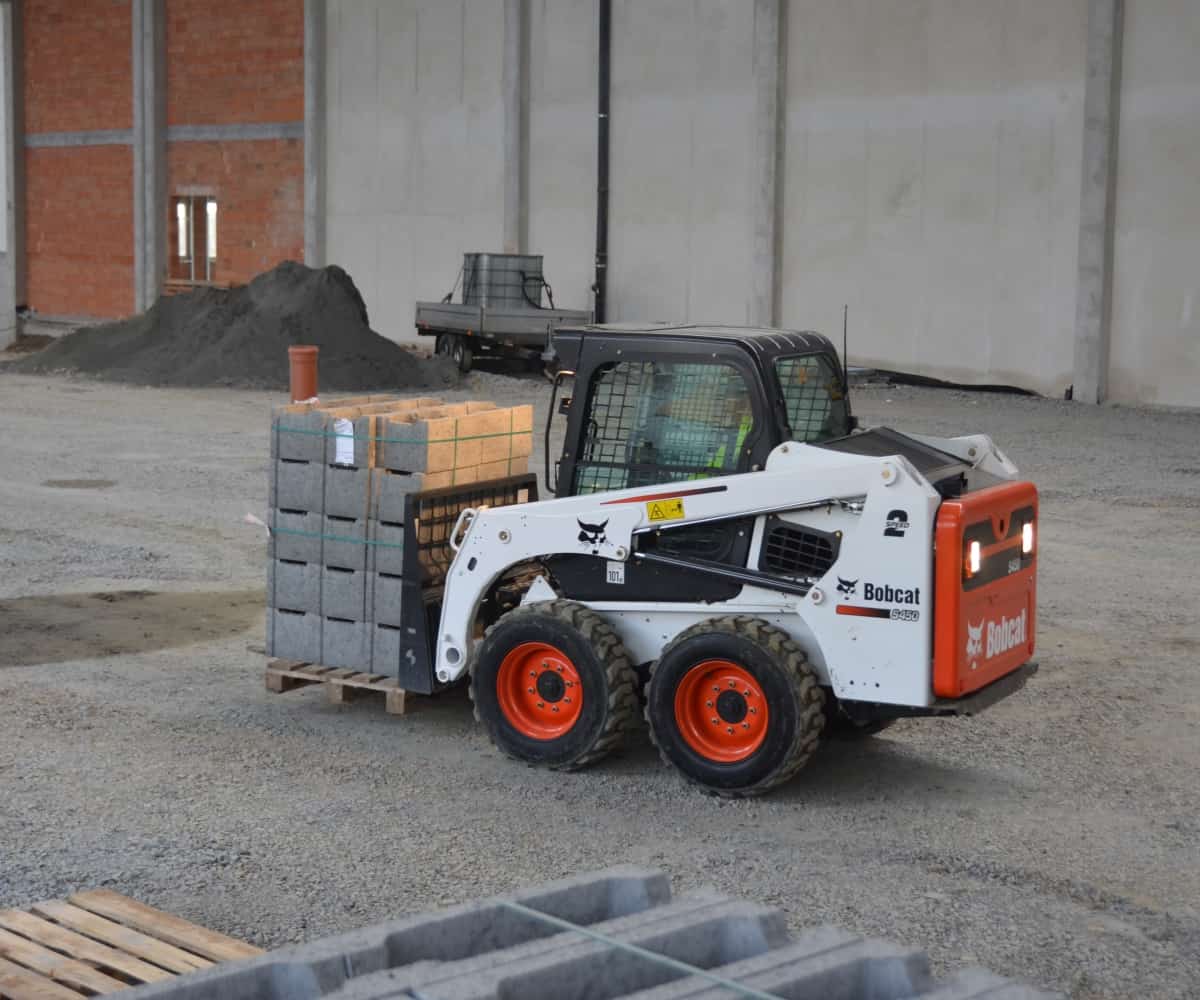

The S450’s compact dimensions allow it to navigate easily in confined spaces, making it perfect for urban construction sites and landscaping projects where space is limited.
Equipped with a Kubota V2203-M-DI-E2B-BC-3 diesel engine, the S450 delivers robust power and torque, ensuring efficient operation even in demanding conditions.

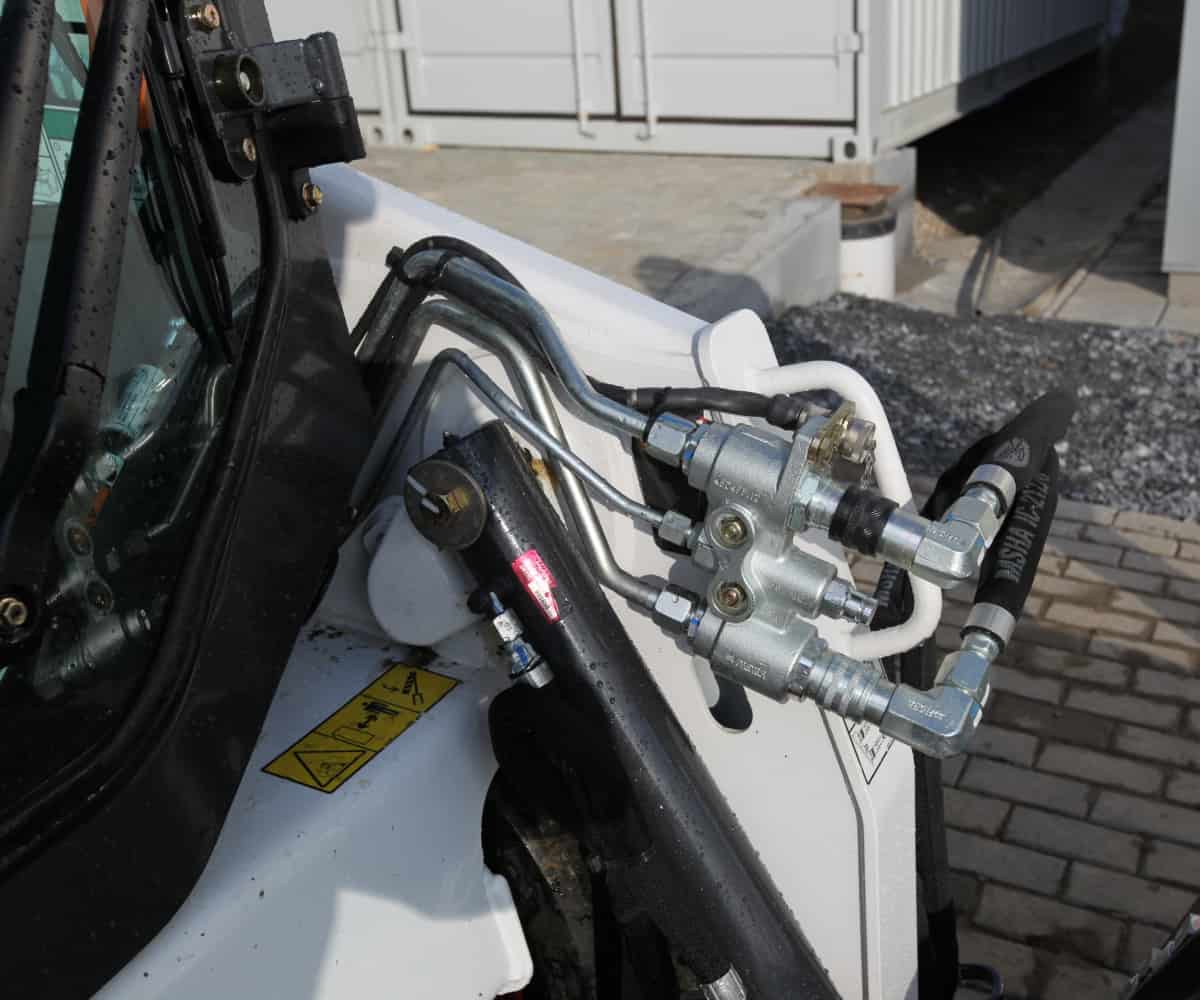

The S450 features an advanced hydraulic system with selectable joystick controls, providing operators with precise control over the loader’s movements and attachments.

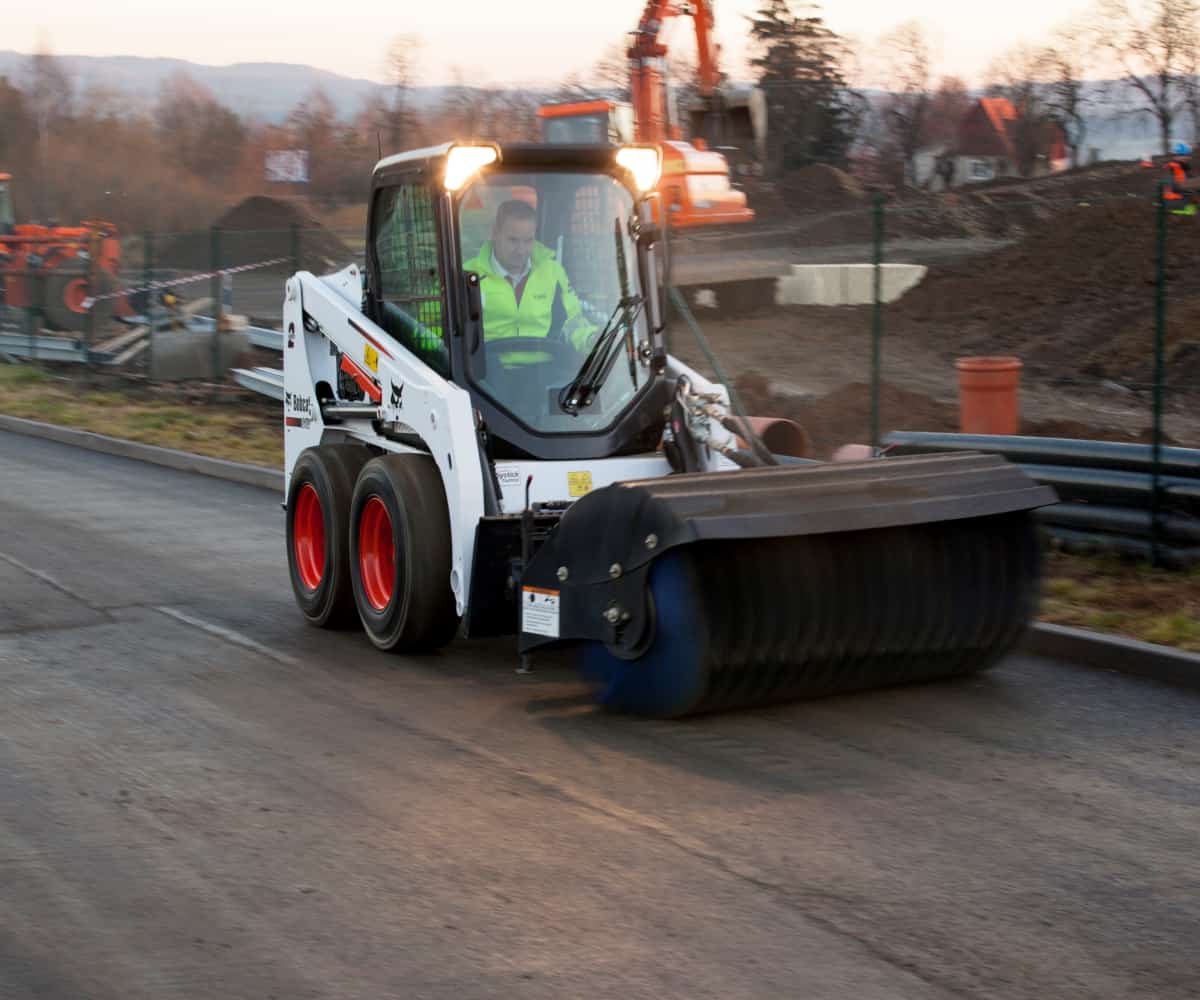

With a wide range of available attachments, including augers, brooms, and buckets, the S450 can be easily adapted to perform multiple functions, increasing its utility on any job site.

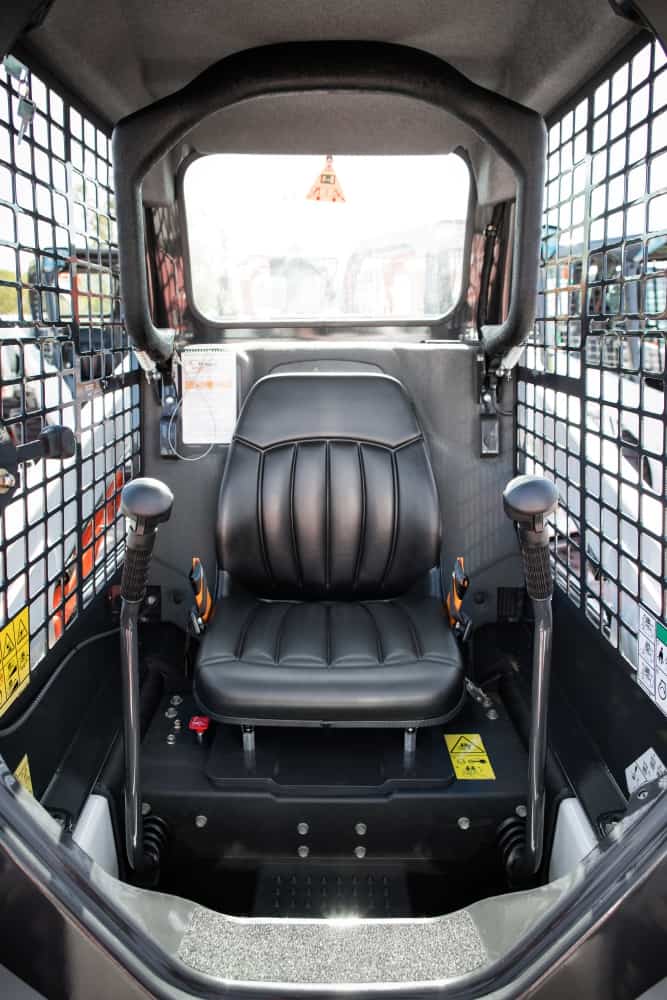

The S450 includes safety features like the Bobcat Interlock Control System and a comfortable cab with optional HVAC, ensuring both safety and comfort for operators during extended use.
Rated Operating Capacity
608 kgHorsepower
48 hpOperating weight
2365 kgTipping load (ISO 14397-1)
1215 kgRated operating capacity (ISO 14397-1)
608 kgPump capacity
64.00 L/minSystem relief at quick couplers
22.4-23.1 MPaMax. travel speed (low range)
11.4 km/hRated Operating Capacity
608 kgMake / Model
Kubota / V2203-M-DI-E2B-BC-3Engine Cooling
LiquidEngine Fuel
DieselHorsepower
48 hpPower at 2800 RPM (ISO 14396 GROSS):
35.9 kWTorque at 1700 RPM (SAE J1995 Gross):
149.8 NmNumber of cylinders
4Displacement
2196 cm3Fuel tank
54.50 LOperating weight
2365 kgShipping weight
2052 kgVehicle steering
Direction and speed controlled by two hand leversLoader hydraulics tilt and lift
Separate foot pedals or Selectable Joystick Controls (SJCFront auxiliary (standard)
Electrical switch on right-hand steering leverTransmission
Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motorsStandard Seat
Lift arm supportAutomatically activated glow plugs
Noise reduction kitAuxiliary hydraulics: variable flow/maximum flow
Operating lights, front and rearBob-Tach™ frame
Parking brakeBobcat Interlock Control System (BICS)
Seat belt10 x 16.5, 10–ply, Heavy duty tyres
Seat barStandard Cab with rear window 1
Spark arrestor mufflerElectrically activated proportional front auxiliary hydraulics
EAC certificationEngine/hydraulics system shutdown Manua
Warranty: 24 months or 2000 hours (whichever occurs first)Deluxe instrument pane
Selectable Joystick Controls (SJC)Power Bob-Tach™
Air ride seat with 2 point seat beltCab enclosure
RadioDeluxe pressurized cab with heating
StrobeDeluxe pressurized cab with HVAC
Back-up alarmHydraulic bucket positioning (including ON/OFF switch)
Beacon
