Product Overview
Unmatched Versatility and Performance

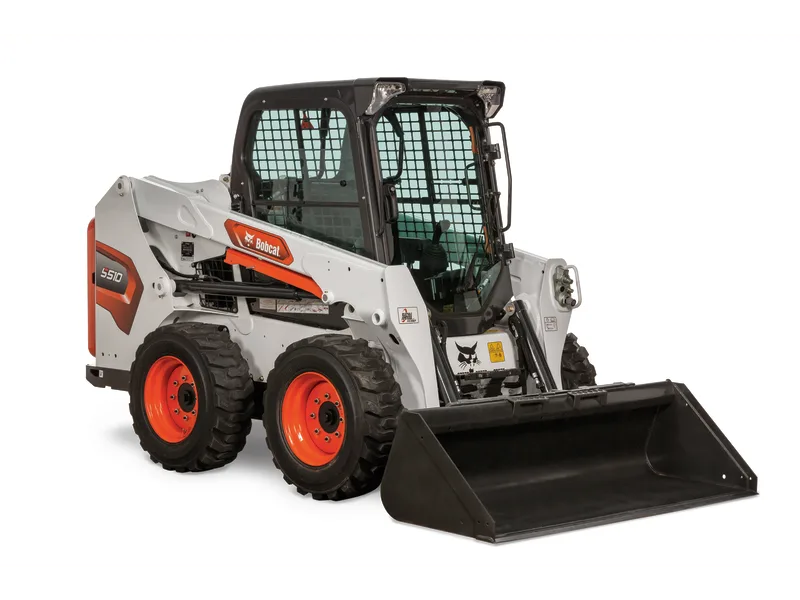

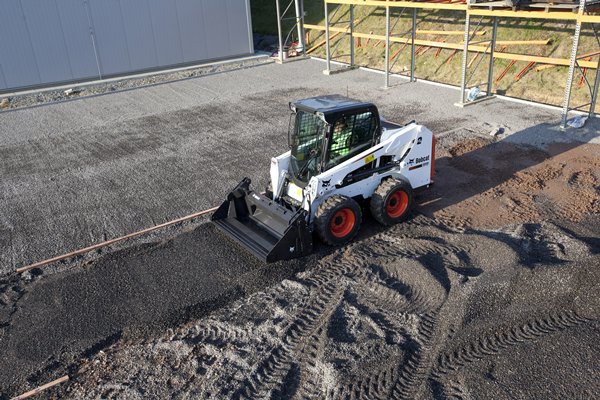

The Bobcat S510 Skid Steer Loader offers exceptional power and agility for diverse construction tasks. With a robust engine and advanced hydraulics, it ensures reliable performance in demanding environments.
– Rated operating capacity of 810 kg
– Max travel speed of 17.3 km/h
– Efficient Kubota diesel engine
– Versatile attachment options

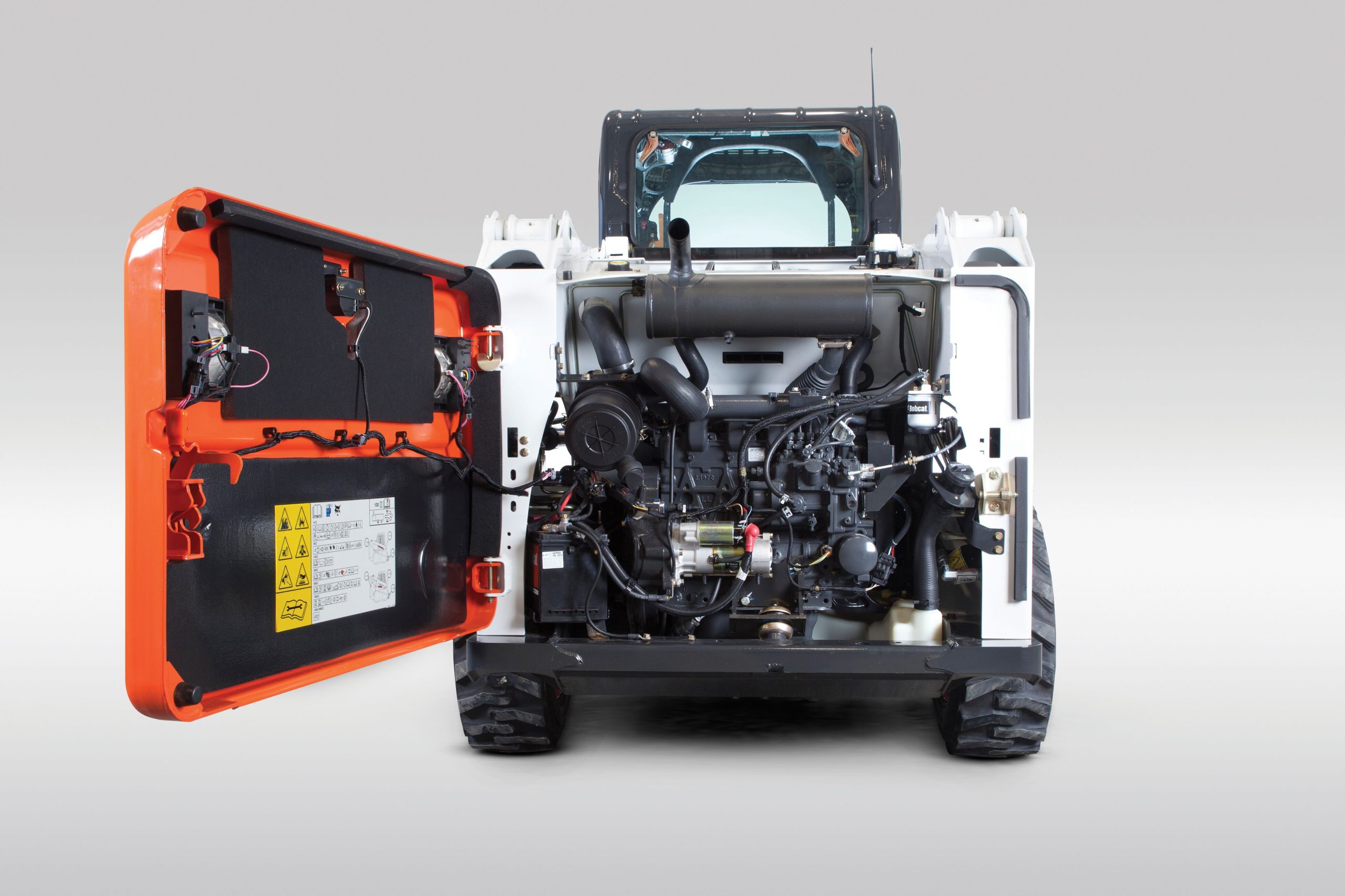

The S510 is equipped with a Kubota V2403-MDI-E3 engine, delivering 34.4 kW at 2700 RPM, ensuring robust performance and efficiency in various applications.

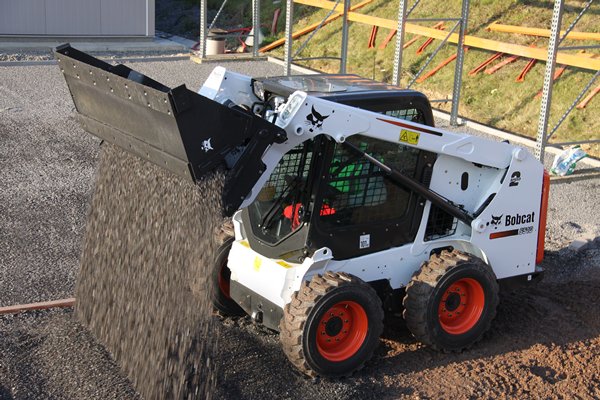

Featuring a pump capacity of 64.70 L/min and system relief at quick couplers of 23.8-24.5 MPa, the S510 provides superior hydraulic power for demanding tasks.

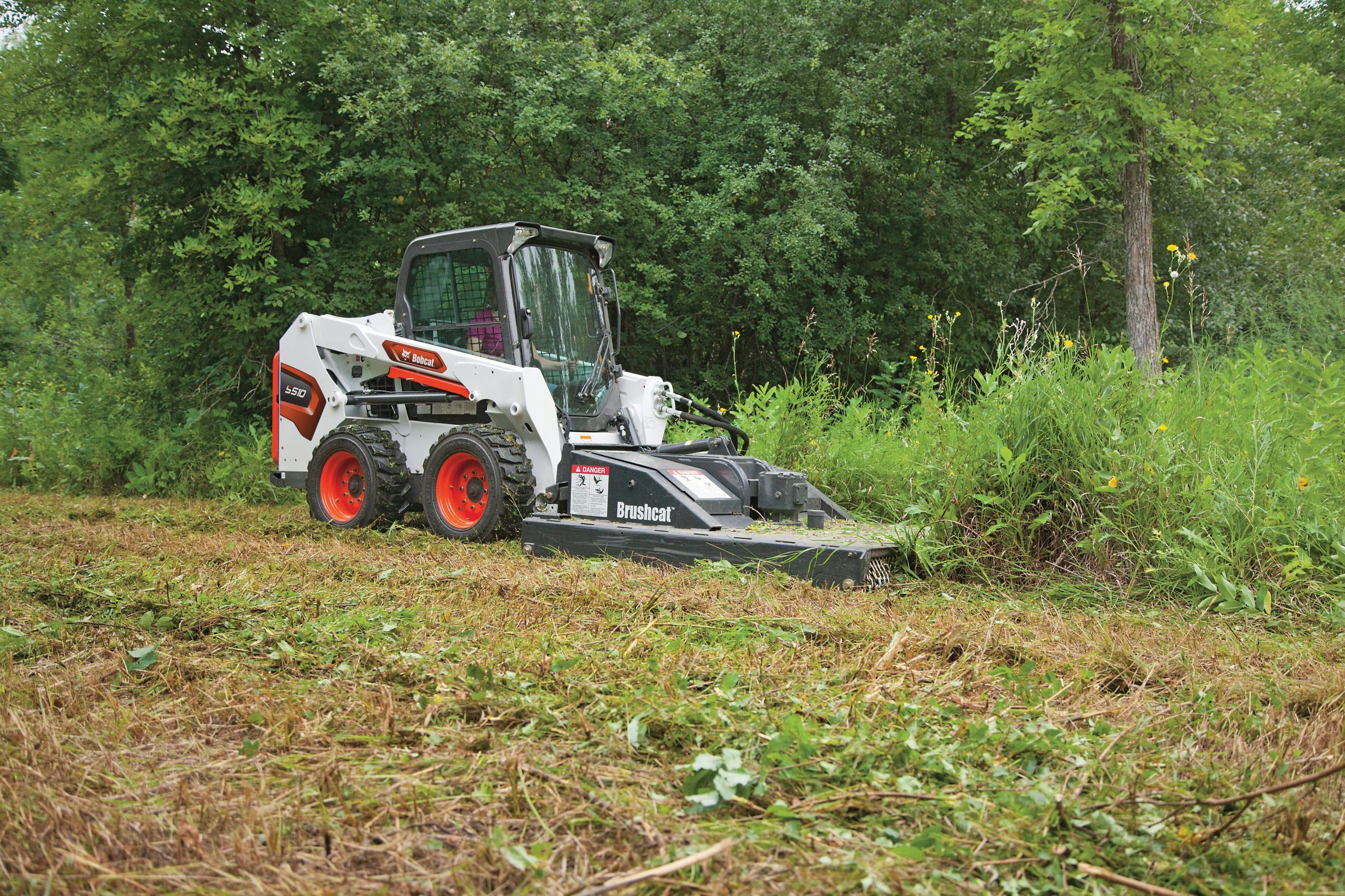

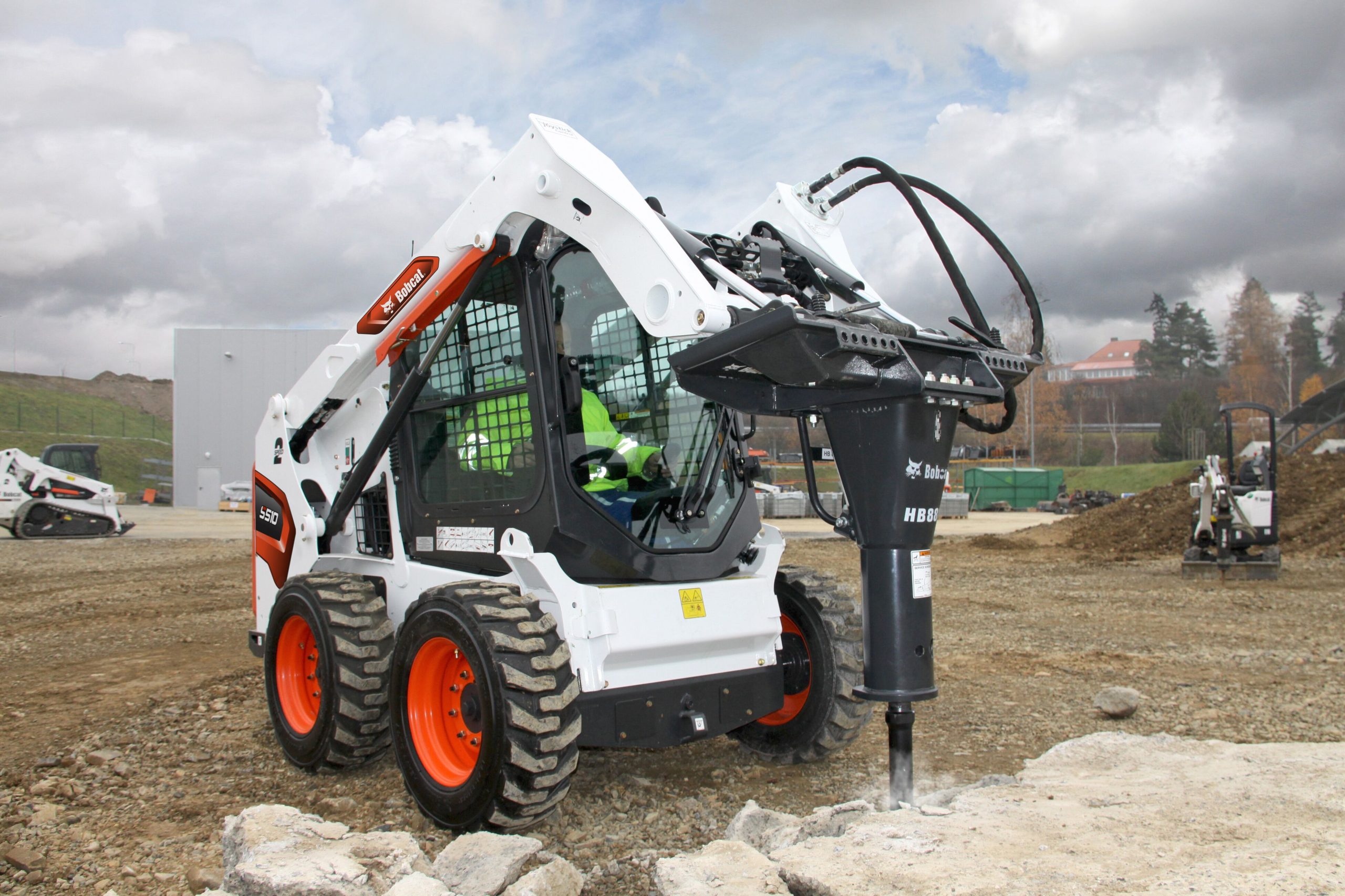

The S510 supports a wide range of attachments, including augers, breakers, and buckets, allowing for customization to meet specific job requirements.

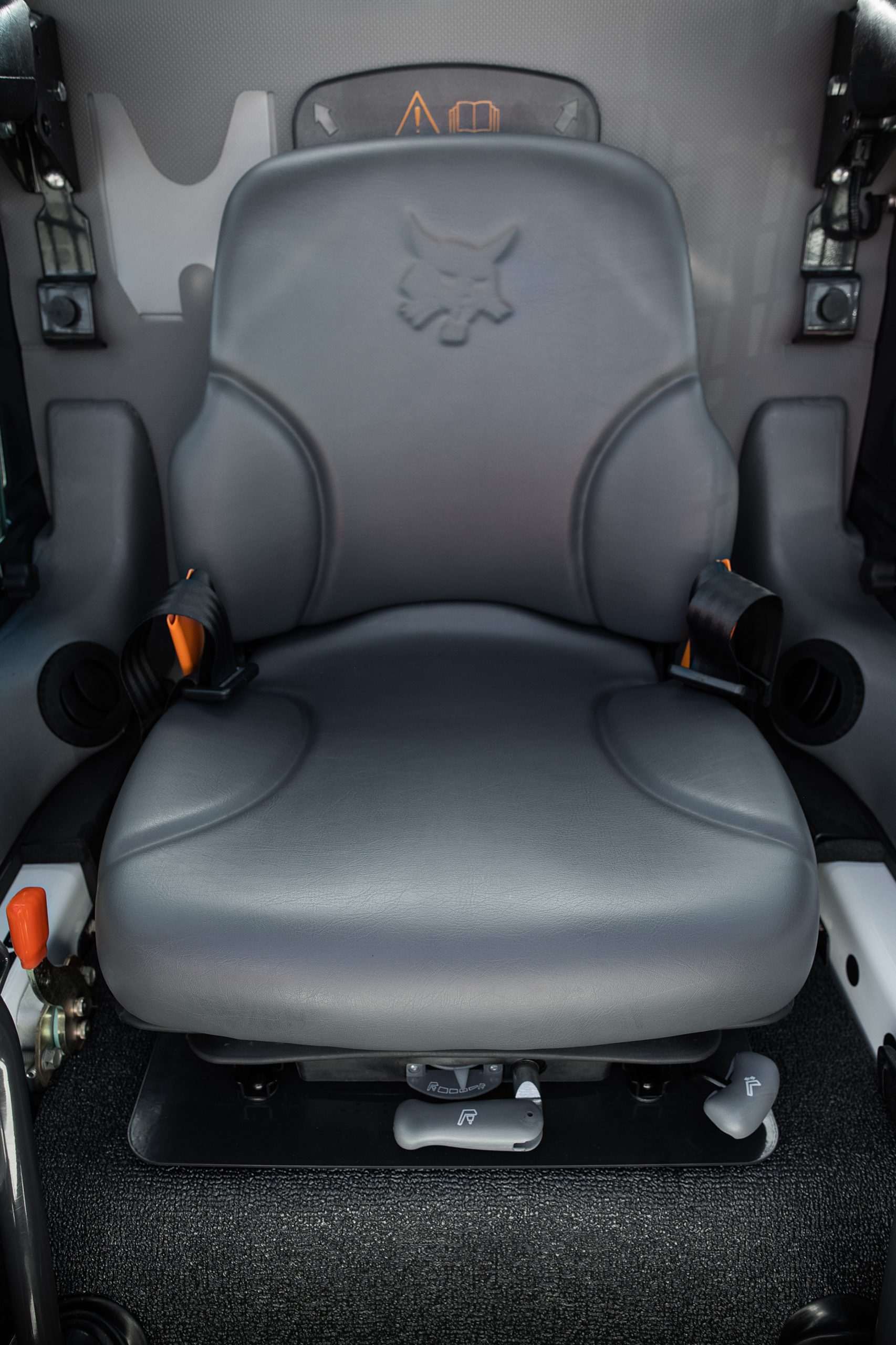

With selectable joystick controls and a deluxe operator cab option, the S510 ensures operator comfort and intuitive handling for improved productivity.

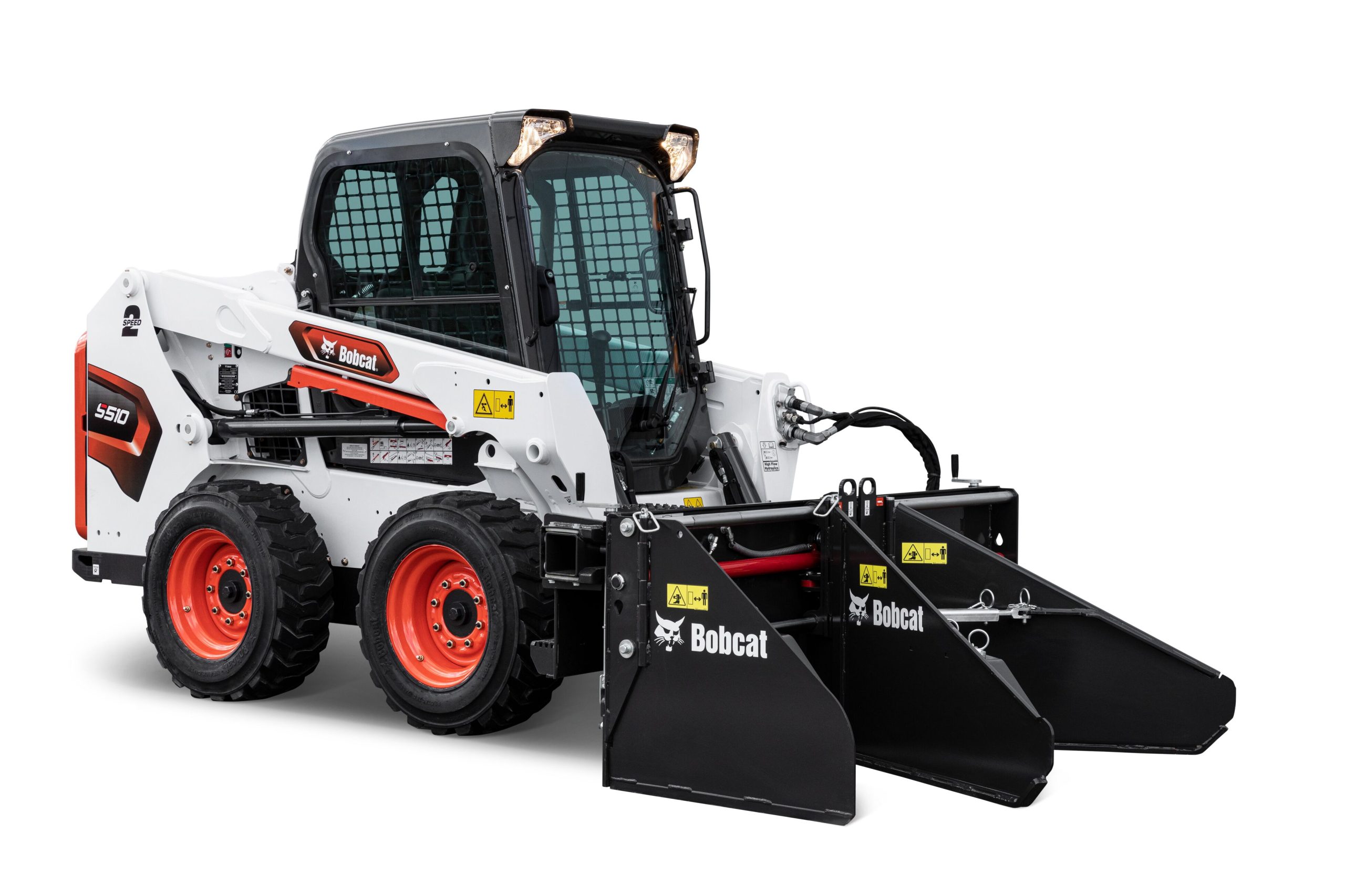

The S510 features heavy-duty tires and a robust frame, designed to endure challenging environments while maintaining optimal performance.
Rated operating capacity
810 kgHorsepower
46 hpOperating weight
2686 kgTipping load (ISO 14397-1)
1619 kgRated operating capacity
810 kgPump capacity
64 L/minSystem relief at quick couplers
23-24 MPaMax. travel speed (high range - option)
17 km/hMax. travel speed (low range)
11 km/hMake / Model
Kubota / V2403-MDI-E3Engine Cooling
LiquidEngine Fuel
DieselHorsepower
46 hpPower at 2700 RPM:
34 kWTorque at 1425 RPM (SAE J1995 Gross)
158 NmNumber of cylinders
4Displacement
2433 cm3Fuel tank
93 LOperating weight
2686 kgShipping weight
2343 kgVehicle steering
Direction and speed controlled by two hand leversLoader hydraulics tilt and lift
Separate foot pedals or Selectable Joystick Controls (SJC)Front auxiliary (standard)
Electrical switch on right-hand steering leverTransmission
Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors10 x 16.5, 10–ply, Heavy duty tyres
Parking brakeAutomatically activated glow plugs
Spark arrestor mufflerAuxiliary hydraulics: variable flow/maximum flow
Standard Cab with rear window 1Bob-Tach™ frame
Standard SeatBobcat Interlock Control System (BICS)
Seat beltElectrically activated proportional front auxiliary hydraulics
Seat barEngine/hydraulics system shutdown
Work lights, front and rearManual
Warranty: 24 months or 2000 hours (whichever occurs first)10 x 16.5, 10–ply, Versatile duty tyres
Deluxe operator cab with windows10 x 16.5, 10–ply, Heavy duty tyres, offset rims
Exhaust Shield10 x 16.5, 10–ply, Severe duty tyres
Fire extinguisher12 x 16.5, Solid flex tyres
High-Flow hydraulics31 x 12-16.5, 10–ply, Superflotation tyres
Power Bob-Tach™Attachment control device
RadioAutomatic Ride Control
Road OptionAutomatic Reversing Fan
Sound optionBack-up alarm
Suspension seatBeacon
Selectable Joystick Controls (SJC)Bucket positioning kit
StrobeCloth Suspension Seat
Tailgate lock kitCustom paint color (min order of 5 units)
2 SpeedDeluxe instrument panel
EAC certification
