Product Overview
Unmatched Versatility and Power
The Bobcat S550 Skid Steer Loader offers exceptional performance and versatility for various applications. Its robust design ensures reliability and efficiency, making it ideal for construction and landscaping tasks.
– High tipping load capacity
– Efficient hydraulic system
– Advanced control options

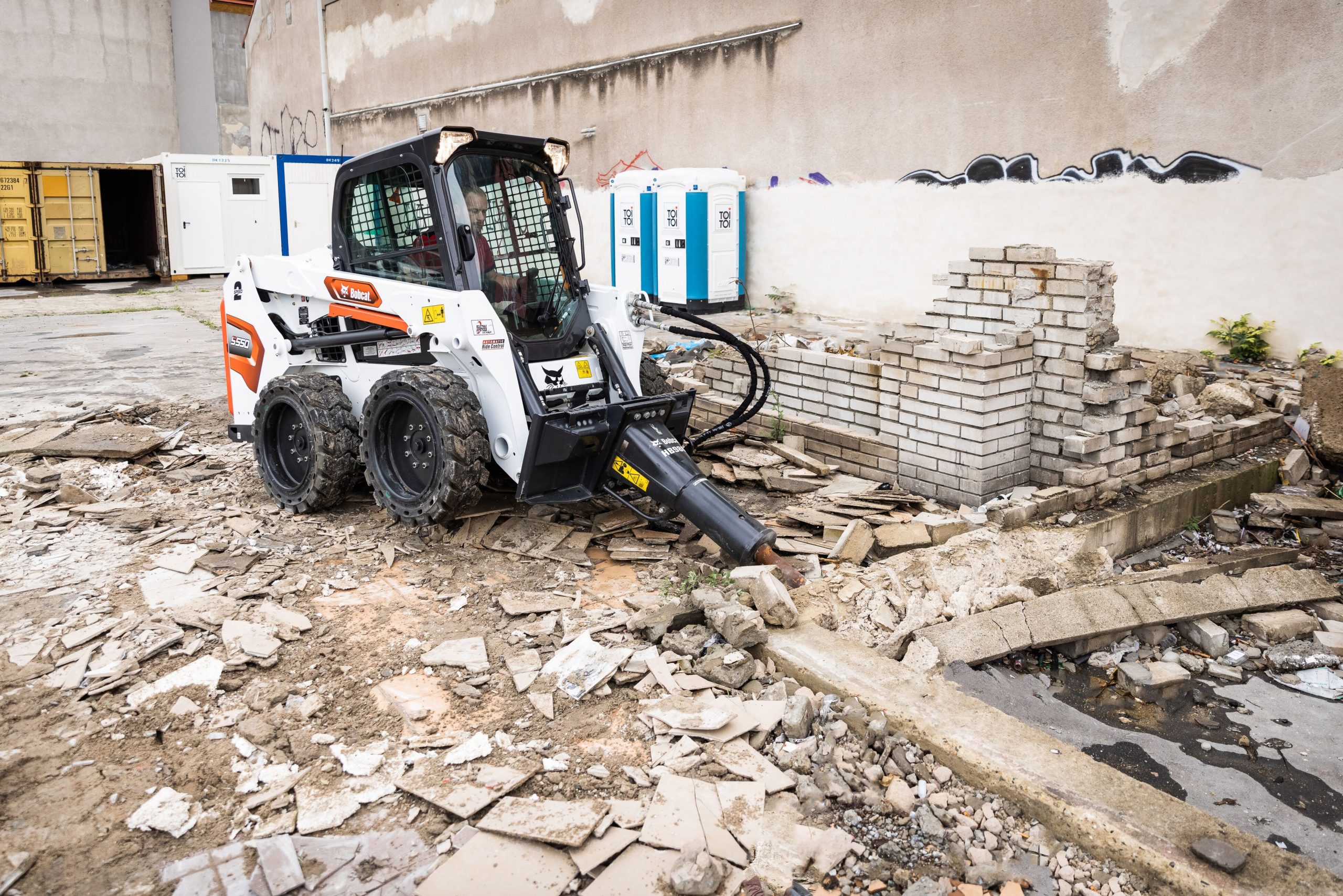

The S550 is equipped with a Kubota V2607-DI-T-E3B-BC-2 diesel engine, delivering a maximum power of 45.5 kW at 2700 RPM, ensuring robust performance and efficiency for demanding tasks.

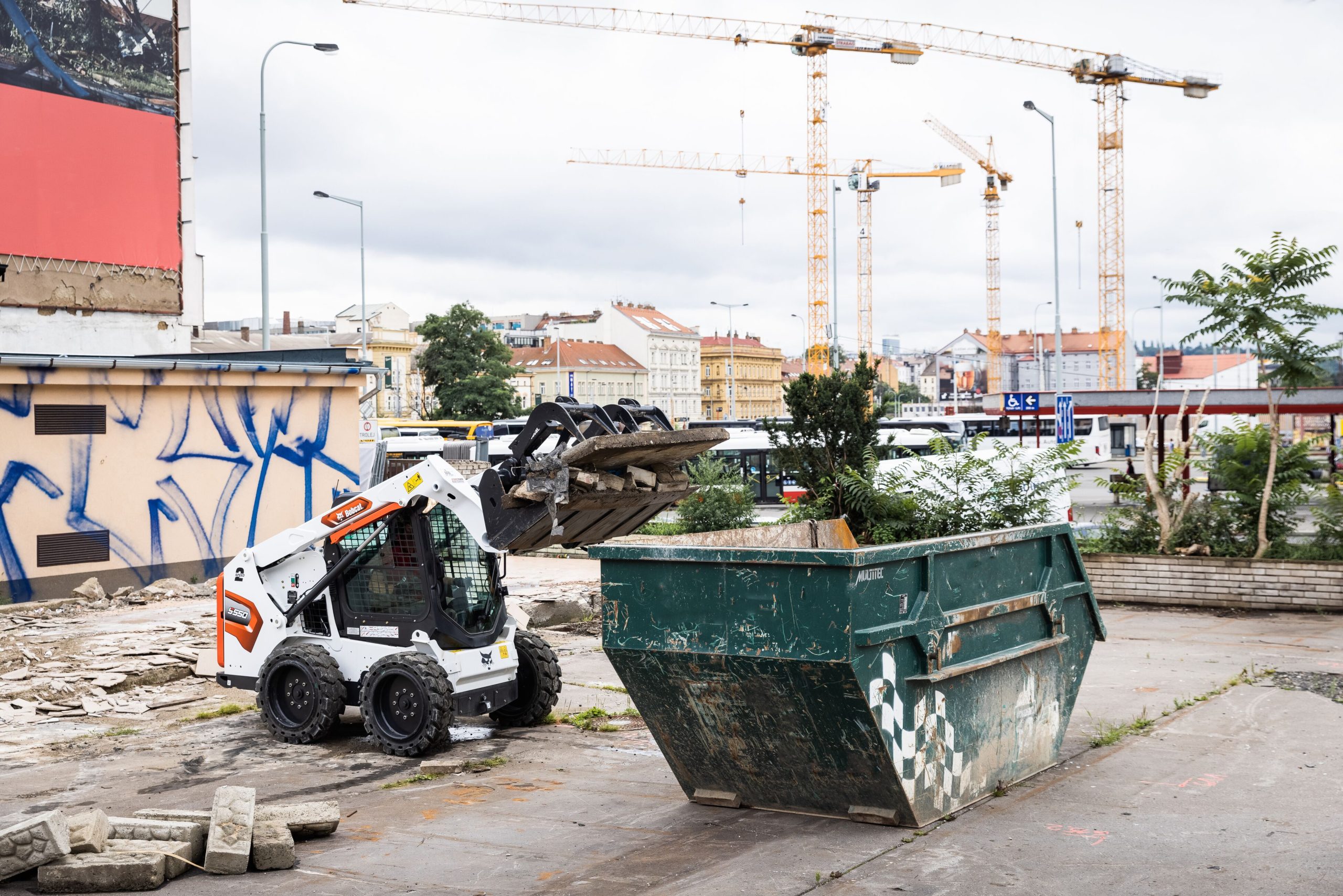

With a standard pump capacity of 64.70 L/min and an optional high-flow capacity of 101.10 L/min, the S550 provides superior hydraulic power for various attachments and operations.
The S550 features selectable joystick controls (SJC), offering precise handling and ease of operation, enhancing productivity and reducing operator fatigue.

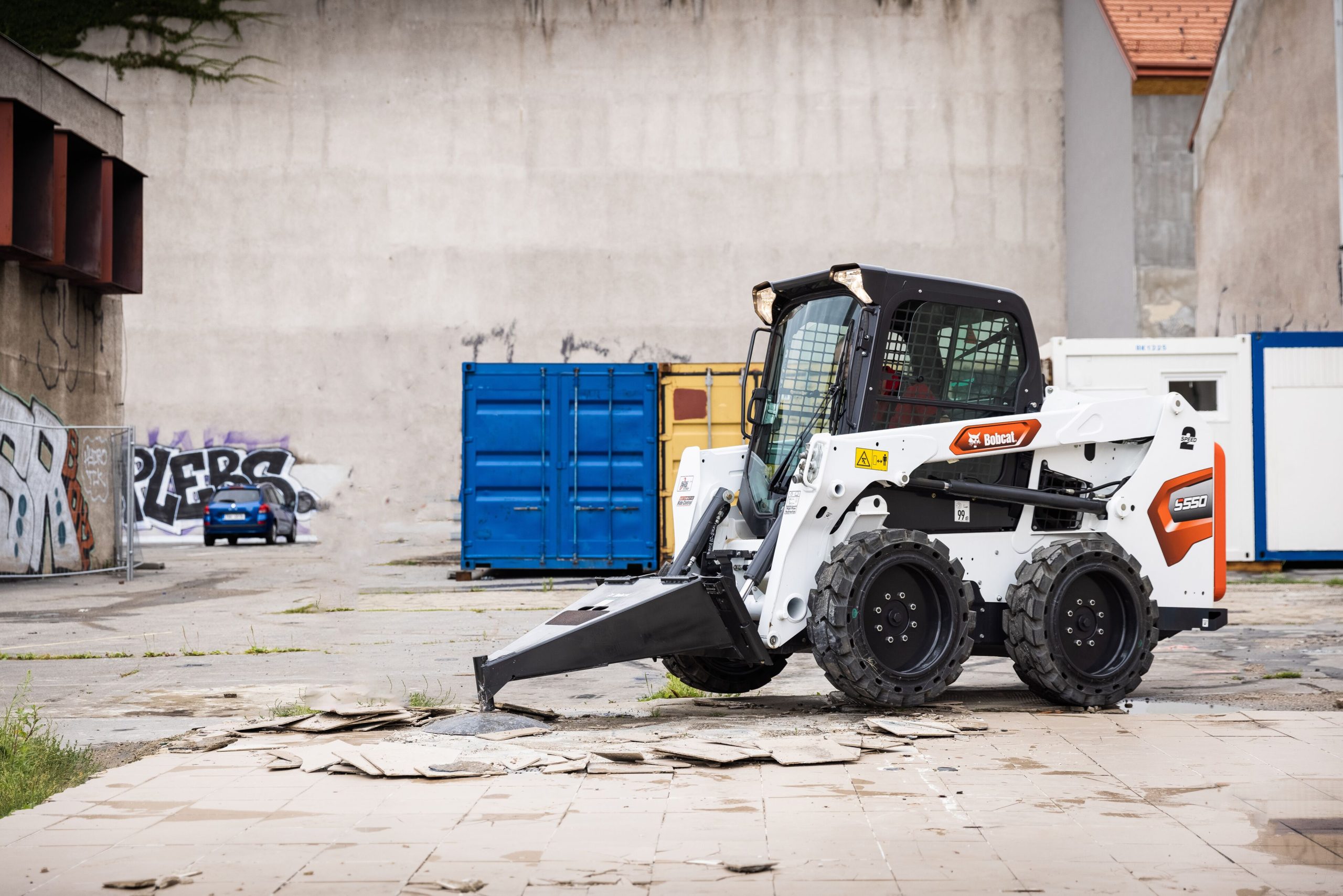

With an operating weight of 2841 kg and heavy-duty tires, the S550 is designed to handle challenging environments, ensuring durability and long-term reliability.

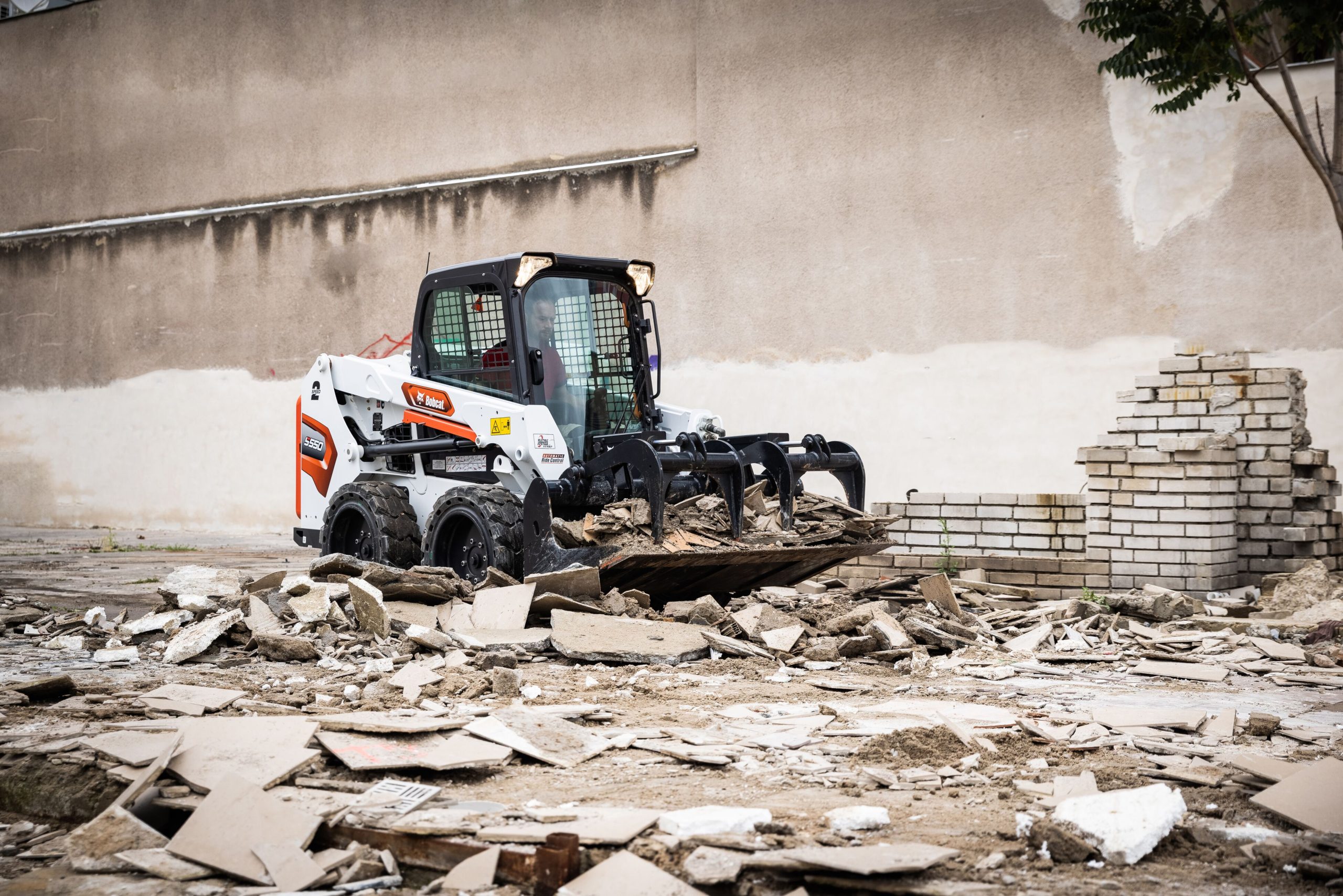

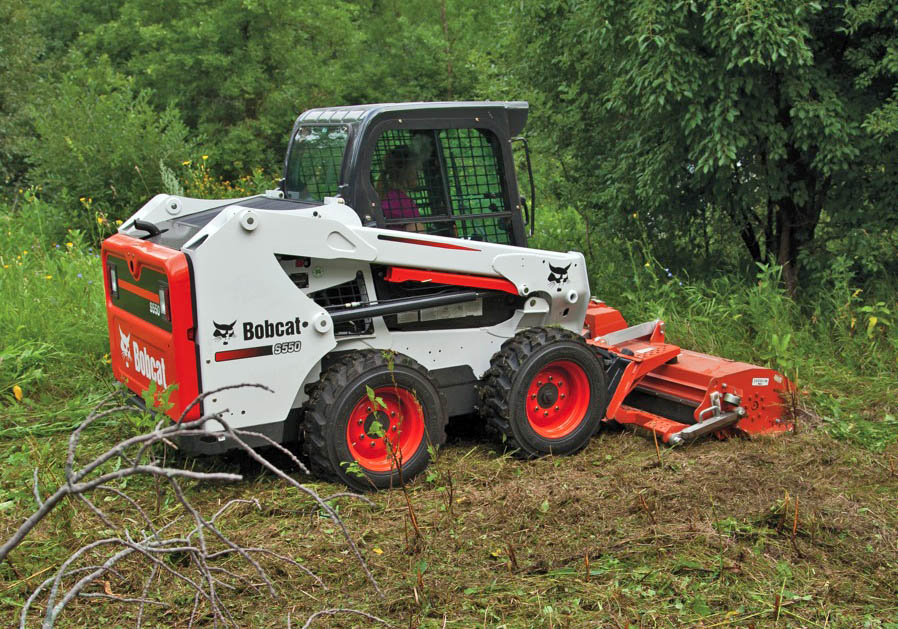

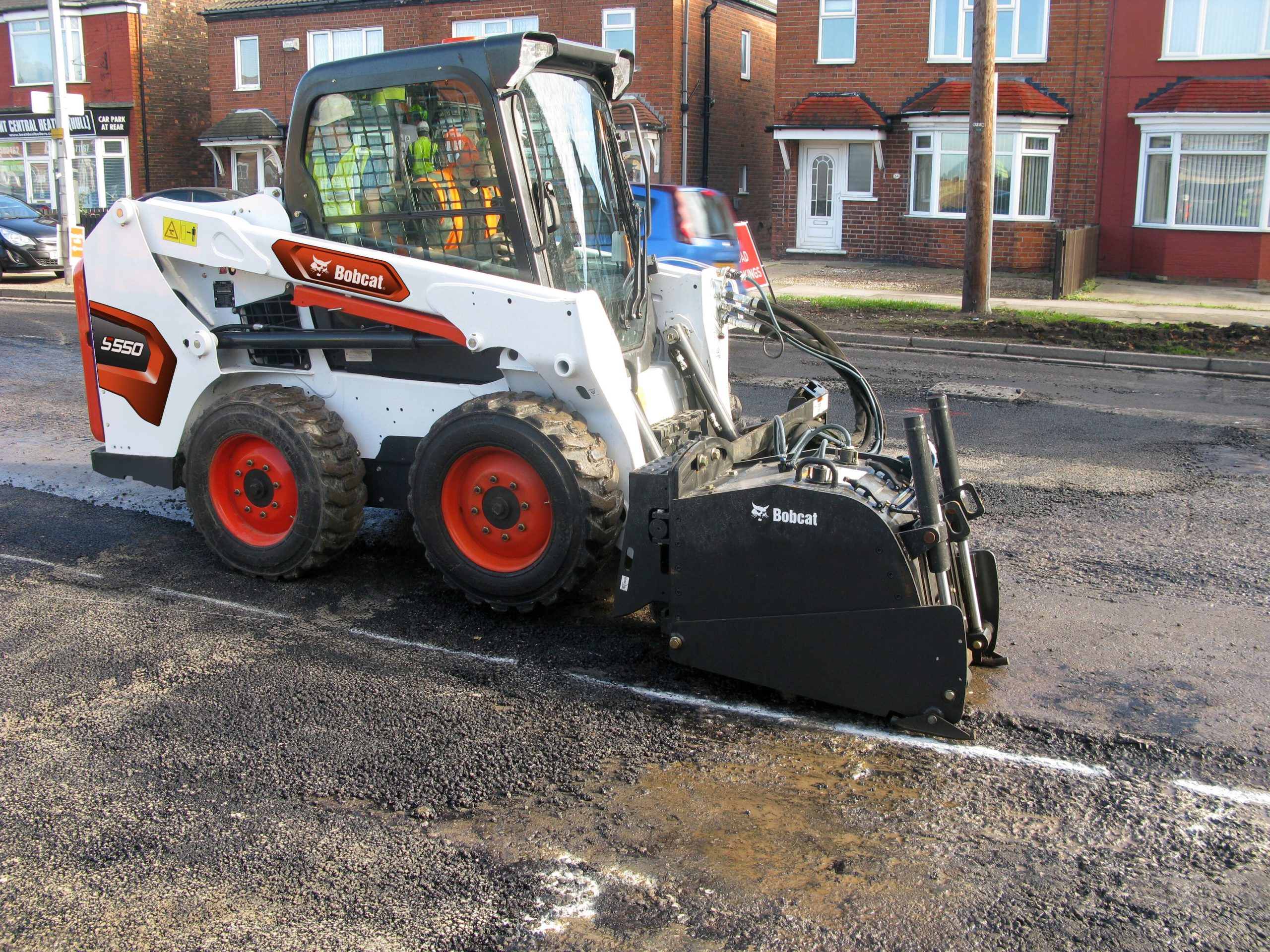

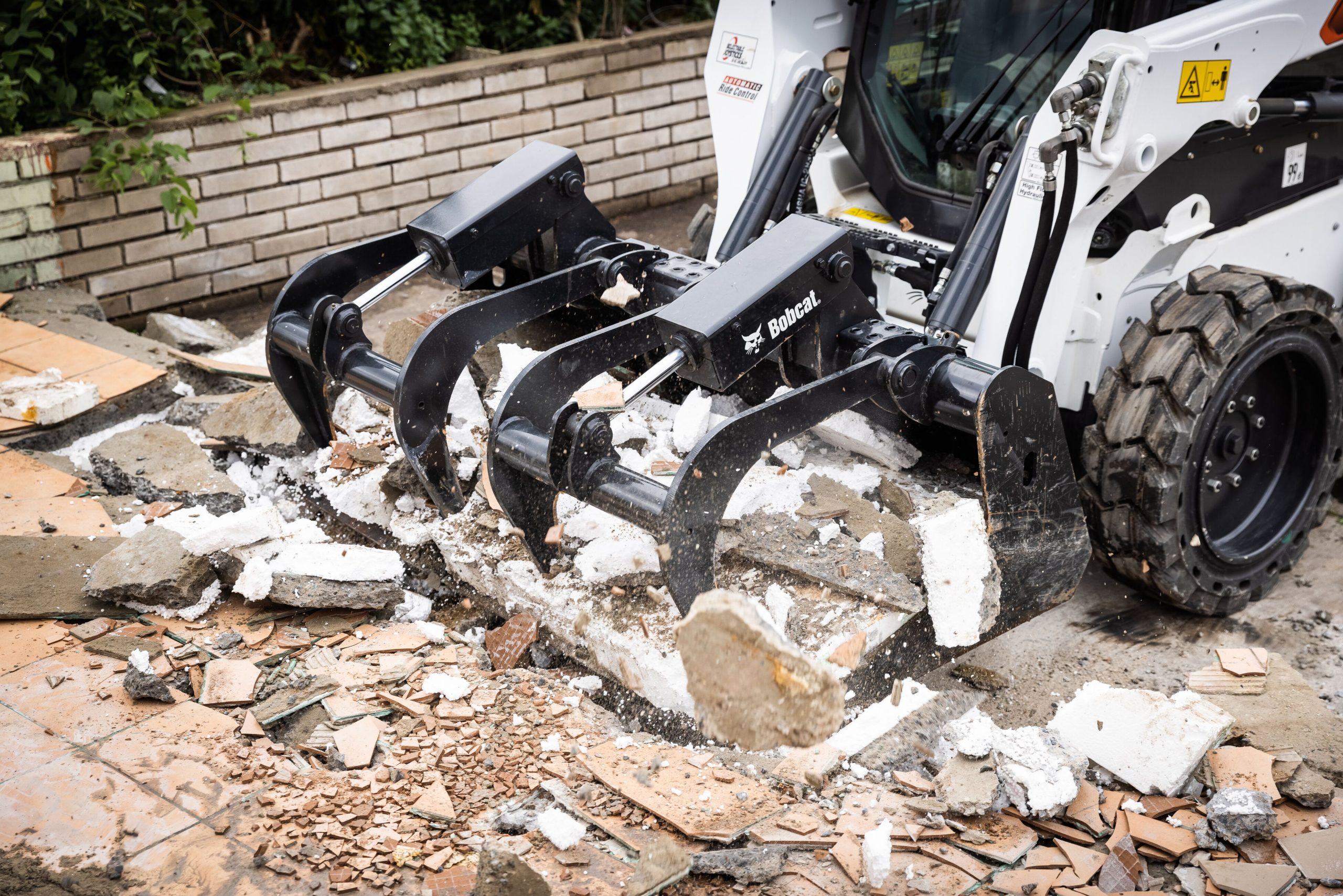

The S550 supports numerous attachments, including augers, breakers, and buckets, allowing it to adapt to various tasks, from construction to landscaping.
Rated operating capacity
894 kgHorsepower
61 hpOperating weight
2841 kgTipping load (ISO 14397-1)
1788 kgRated operating capacity
894 kgPump capacity
64.70 L/minPump capacity (with high flow option)
101.10 L/minSystem relief at quick couplers
23.8-24.5 MPaMax. travel speed (high range - option)
17.3 km/hMax. travel speed (low range)
11.8 km/hMake / Mode
Kubota / V2607-DI-T-E3B-BC-2Engine Cooling
LiquidEngine Fuel
DieselHorsepower
61 hpTorque at 1425 RPM (SAE J1995 Gross)
201.0 NmNumber of cylinders
4Displacement
2600 cm3Fuel tank
93.70 LOperating weight
2841 kgShipping weight
2503 kgVehicle steering
Direction and speed controlled by two hand leversLoader hydraulics tilt and lift
Separate foot pedals or Selectable Joystick Controls (SJC)Front auxiliary (standard)
Electrical switch on right-hand steering leverTransmission
Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motorsStandard Seat
Lift arm supportAutomatically activated glow plugs
Work lights, front and rearAuxiliary hydraulics: variable flow/maximum flow
Parking brakeBob-Tach™ frame
Seat beltBobcat Interlock Control System (BICS)
Seat barStandard Cab
Spark arrestor mufflerElectrically activated proportional front auxiliary hydraulics
10 x 16.5, 10–ply, Heavy duty tyresEngine/hydraulics system shutdown
EAC certificationManual
Warranty: 24 months or 2000 hours (whichever occurs first)High-Flow hydraulics
Hydraulic bucket positioning (including ON/OFF switch)Deluxe instrument panel
2 SpeedPower Bob-Tach™
Air ride seat with 2 point seat beltDeluxe pressurized cab with heating
Back-up alarm10 x 16.5, 10–ply, Heavy duty tyres, offset rims
Beacon10 x 16.5, 10–ply, Severe duty tyres
Engine block heater12 x 16.5, Solid flex tyres
Fire extinguisher31 x 12-16.5, 10–ply, Superflotation tyres , offset rims
RadioAdvanced Control System (ACS)
Road kitSelectable Joystick Controls (SJC)
Strobe
