Product Overview
Unmatched Versatility and Power

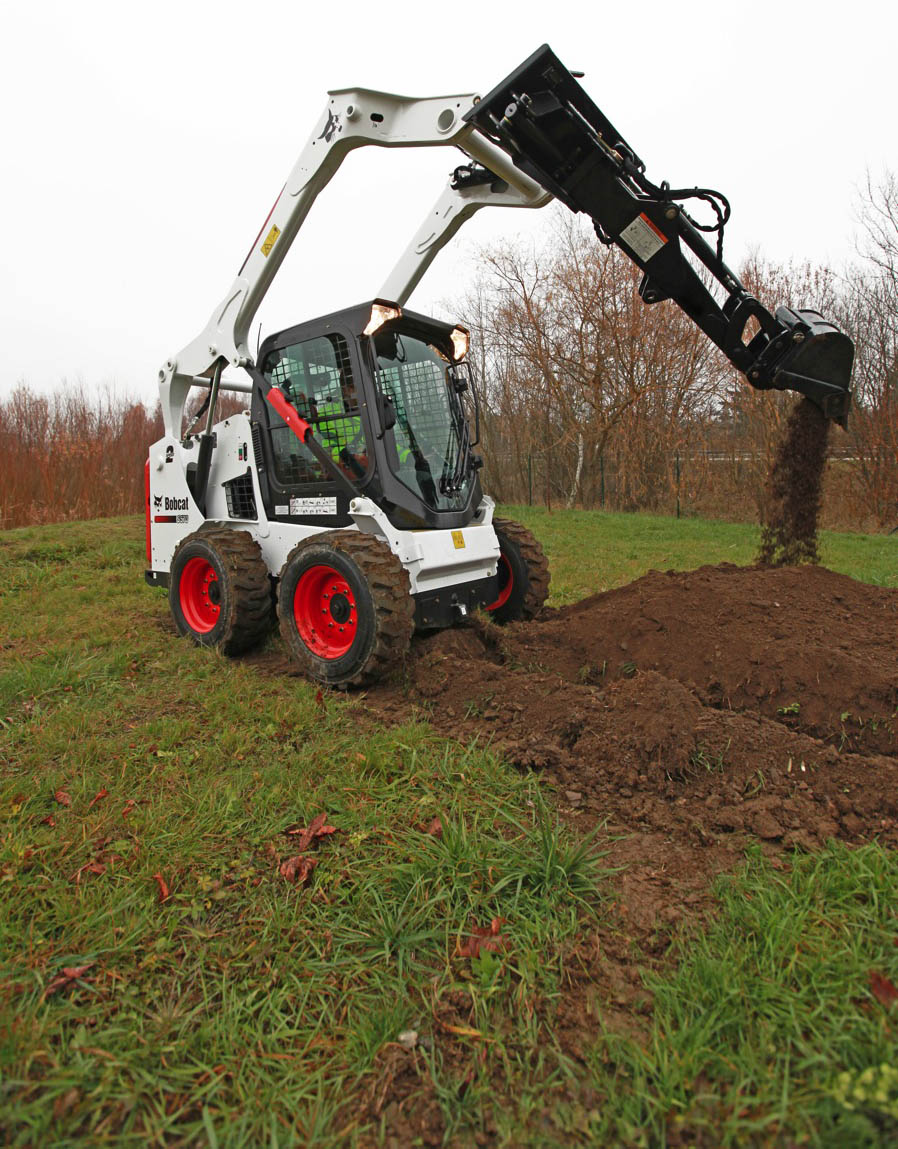

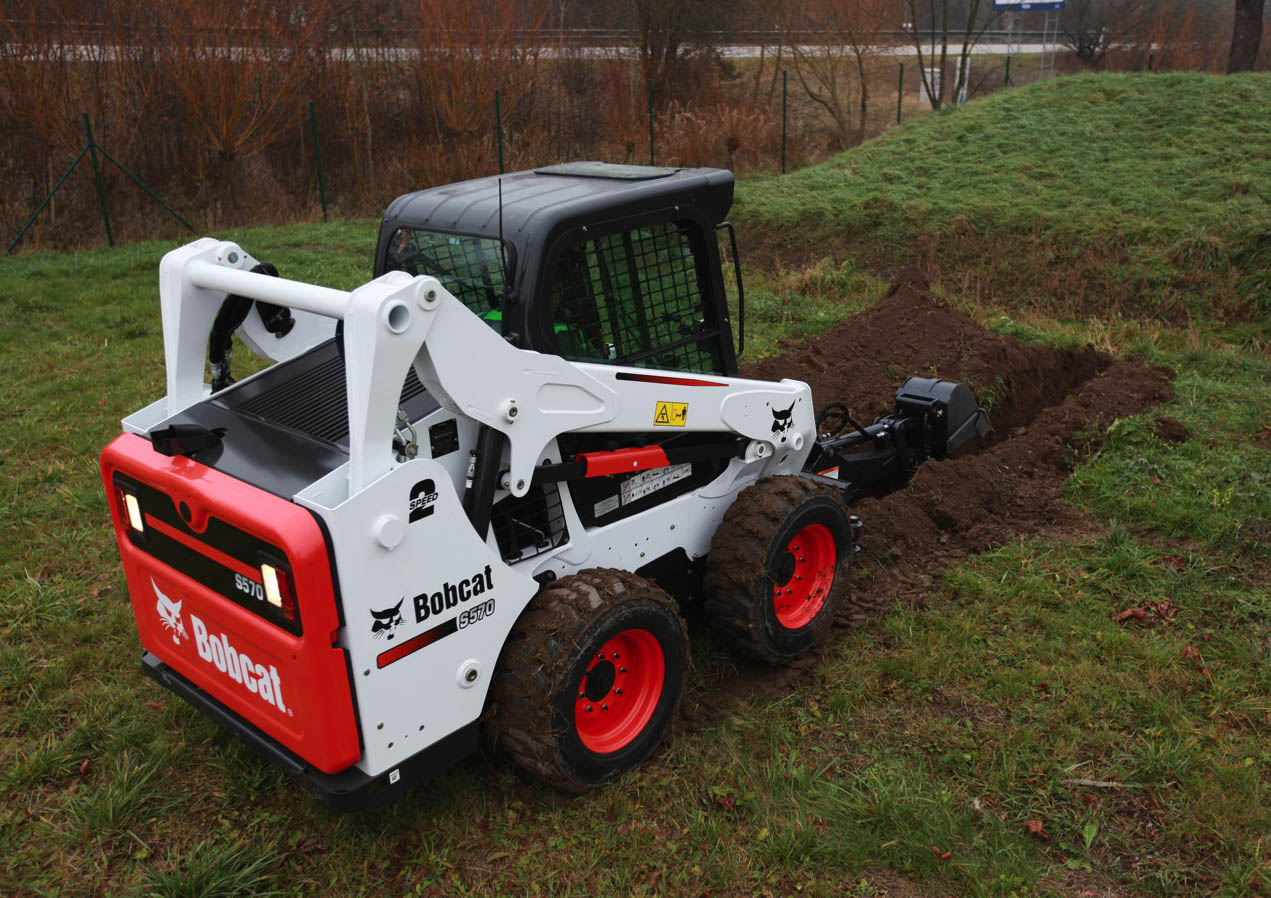

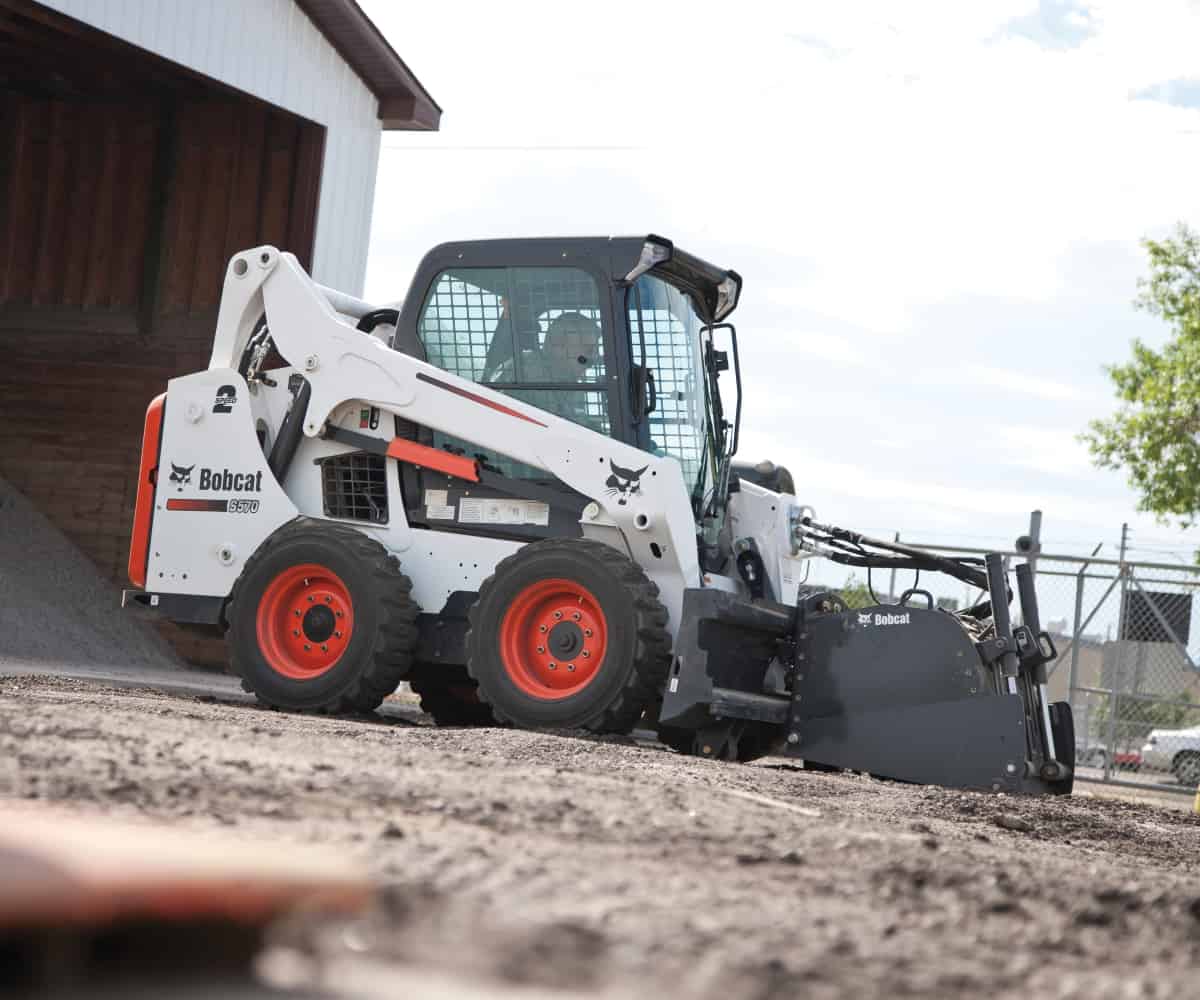

The Bobcat S570 Skid Steer Loader delivers exceptional performance and versatility for various applications. With a robust design and advanced features, it excels in demanding environments.
– High operating capacity
– Advanced control options
– Durable and reliable
– Wide range of attachments

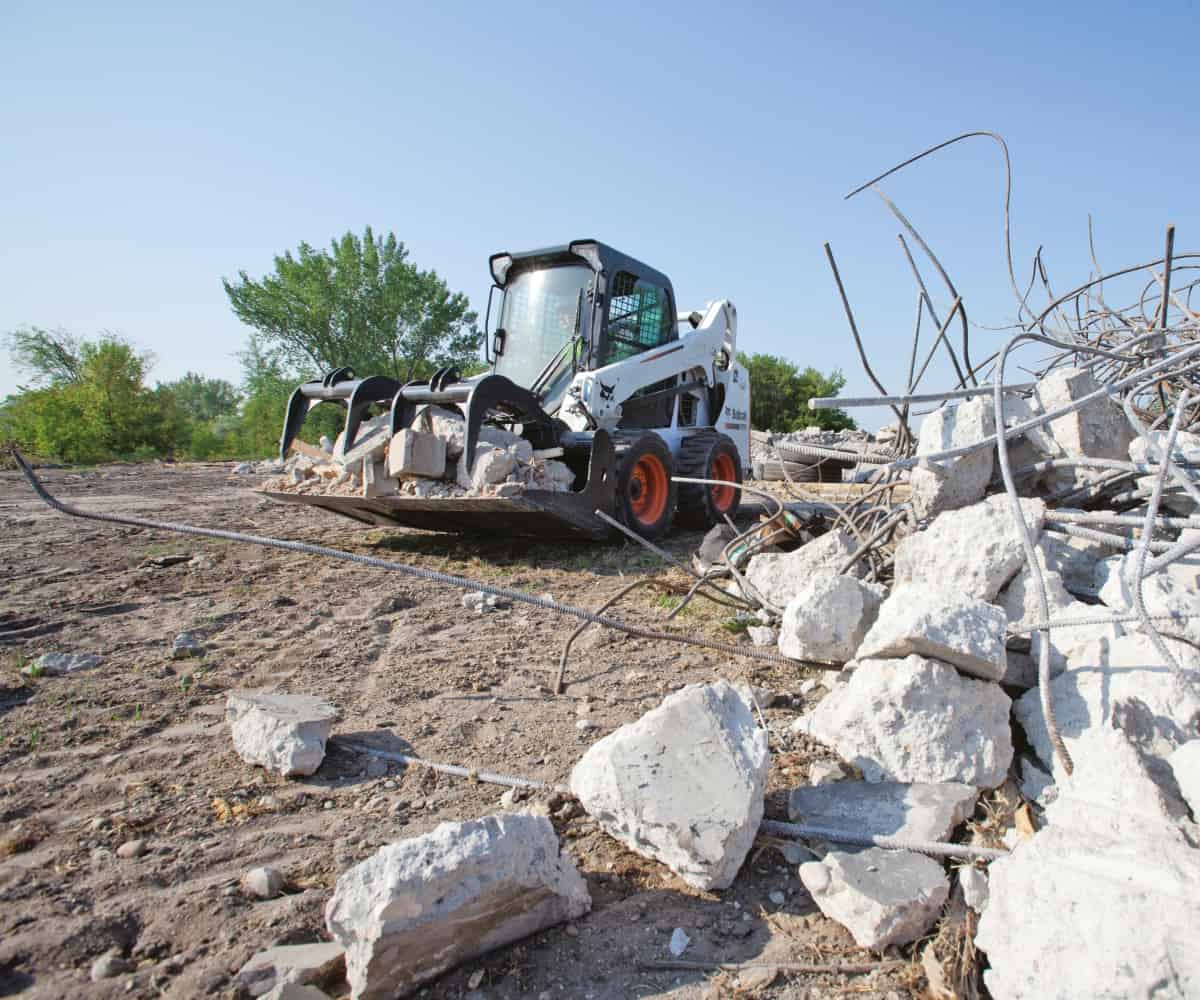

The S570 offers a rated operating capacity of 944 kg, making it ideal for lifting and transporting heavy materials efficiently, enhancing productivity on any job site.

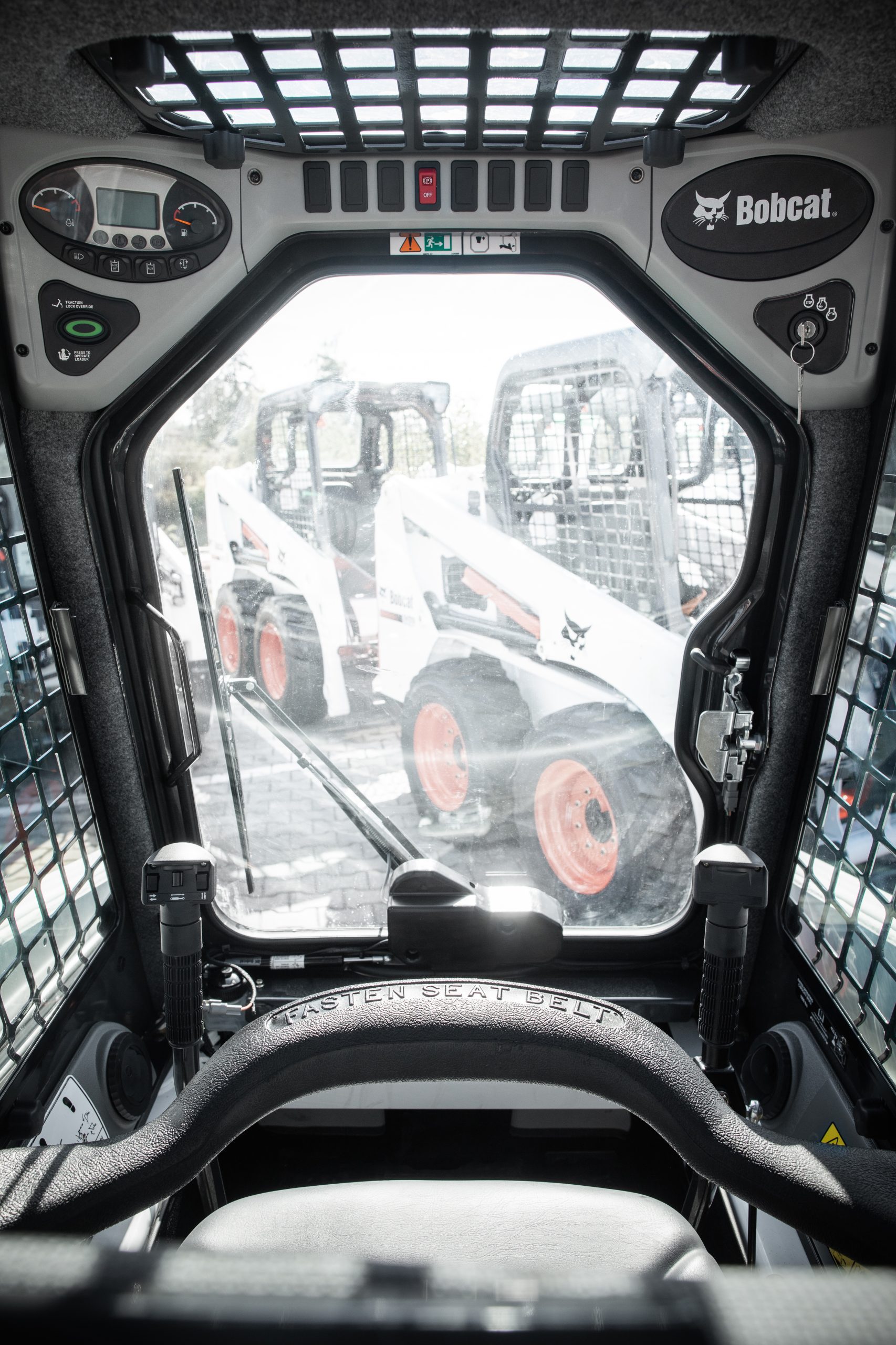

Choose between foot pedals, Advanced Control System (ACS), or Selectable Joystick Controls (SJC) for intuitive and precise operation, tailored to your preference and task requirements.
Engineered with heavy-duty components and a robust frame, the S570 ensures long-lasting performance and reliability, even in the most challenging environments.
Compatible with a wide range of attachments, including augers, breakers, and buckets, the S570 can be customized to tackle diverse tasks, from construction to landscaping.
Powered by a Kubota diesel engine, the S570 delivers 45.5 kW of power, ensuring optimal performance while maintaining fuel efficiency for cost-effective operation.
Rated operating capacity
944 kgHorsepower
61 hpOperating weight
2900 kgTipping load (ISO 14397-1)
1888 kgRated operating capacity
944 kgPump capacity
64.70 L/minPump capacity (with high flow option)
101.10 L/minSystem relief at quick couplers
23.8-24.5 MPaMax. travel speed (high range - option)
17.3 km/hMax. travel speed (low range)
11.8 km/hMake / Mode
Kubota / V2607-DI-T-E3B-BC-2Engine Cooling
LiquidEngine Fuel
DieselHorsepower
61 hpMaximum power at 2700 RPM (SAE J1995)
45.5 kWTorque at 1425 RPM (SAE J1995 Gross)
201.0 NmNumber of cylinders
4Displacement
2600 cm 3Fuel tank
93.70 LOperating weight
2900 kgShipping weight
2560 kgVehicle steering
Direction and speed controlled by two hand leversLoader hydraulics tilt and lift
Separate foot pedals or optional Advanced Control System (ACS) or Selectable Joystick Controls (SJC)Front auxiliary (standard)
Electrical switch on right-hand steering leverTransmission
Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motorsStandard Seat
Lift arm supportAutomatically activated glow plugs
Work lights, front and rearAuxiliary hydraulics: variable
Parking brakeBob-Tach™ frame
Seat beltBobcat Interlock Control System (BICS)
Seat barStandard Cab
Spark arrestor mufflerElectrically activated proportional front auxiliary
10 x 16.5, 10–ply, Heavy duty tyreshydraulics Engine/hydraulics system shutdown
EAC certificationHigh-Flow hydraulics
2 SpeedDeluxe instrument panel
Air ride seat with 2 point seat beltPower Bob-Tach™
Back-up alarmDeluxe pressurized cab with heating
Beacon10 x 16.5, 10–ply, Heavy duty tyres, ofset rims
Bucket positioning valve10 x 16.5, 10–ply, Severe duty tyres
Engine block heater12 x 16.5. Solid flex tyres
Fire extinguisher31 x 12-16.5, 10-ply, Superflotation tyres, offset rims
RadioAdvanced Control System (ACS)
Road kitSelectable Joystick Controls (SJC)
Strobe
