Product Overview
Unmatched Power and Versatility

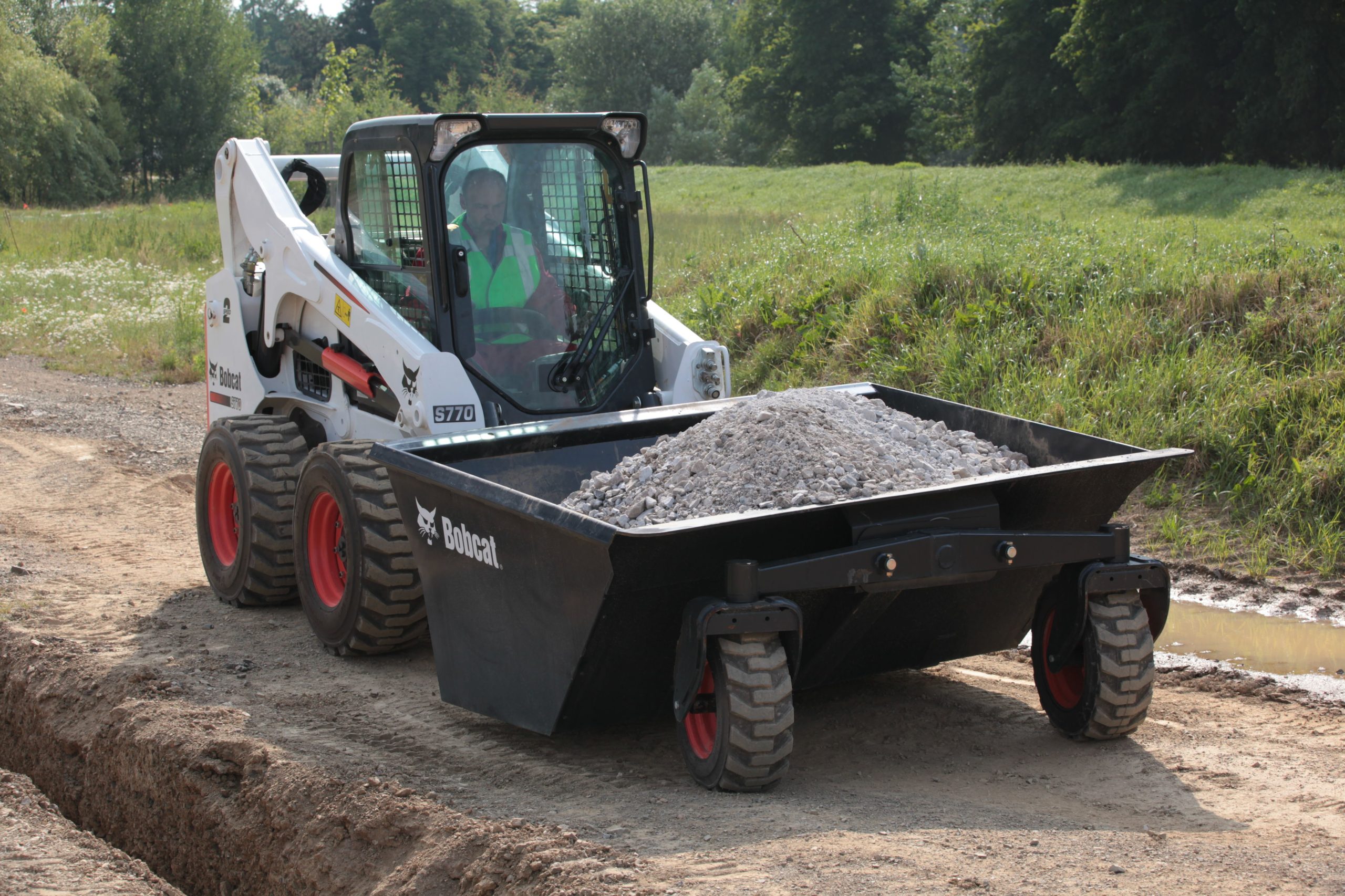

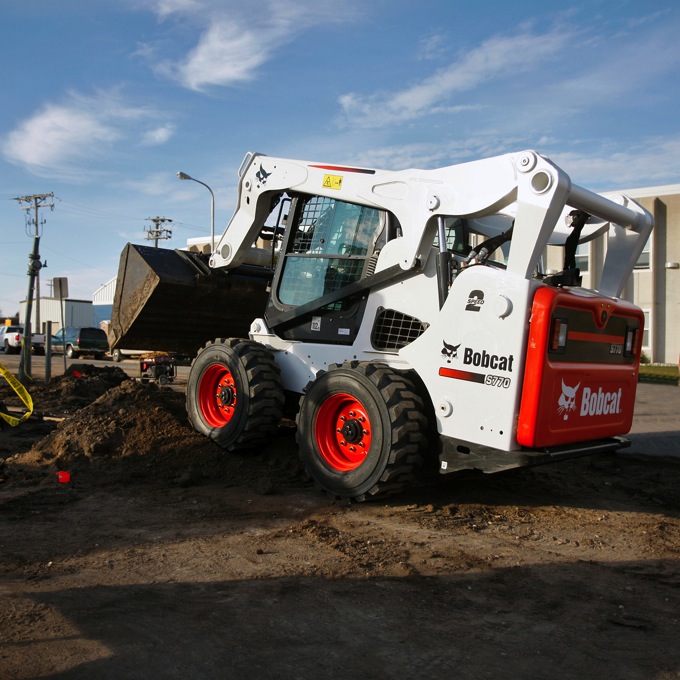

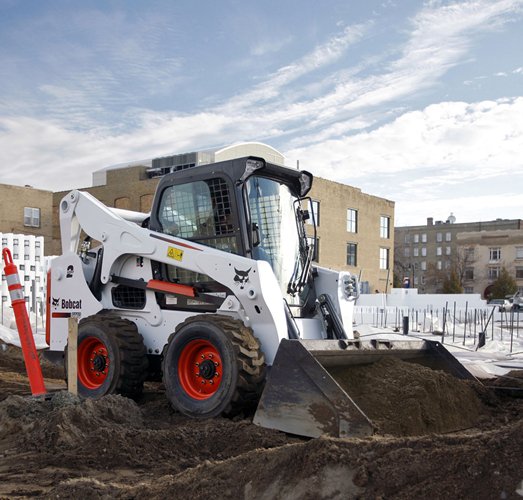

The Bobcat S770 Skid Steer Loader delivers exceptional performance and versatility for demanding tasks. Its robust design and advanced features make it ideal for construction and landscaping projects.
– High operating capacity
– Advanced control options
– Durable and reliable build
The S770 boasts a tipping load of 3137 kg, allowing it to manage substantial materials effortlessly, enhancing productivity on any job site.

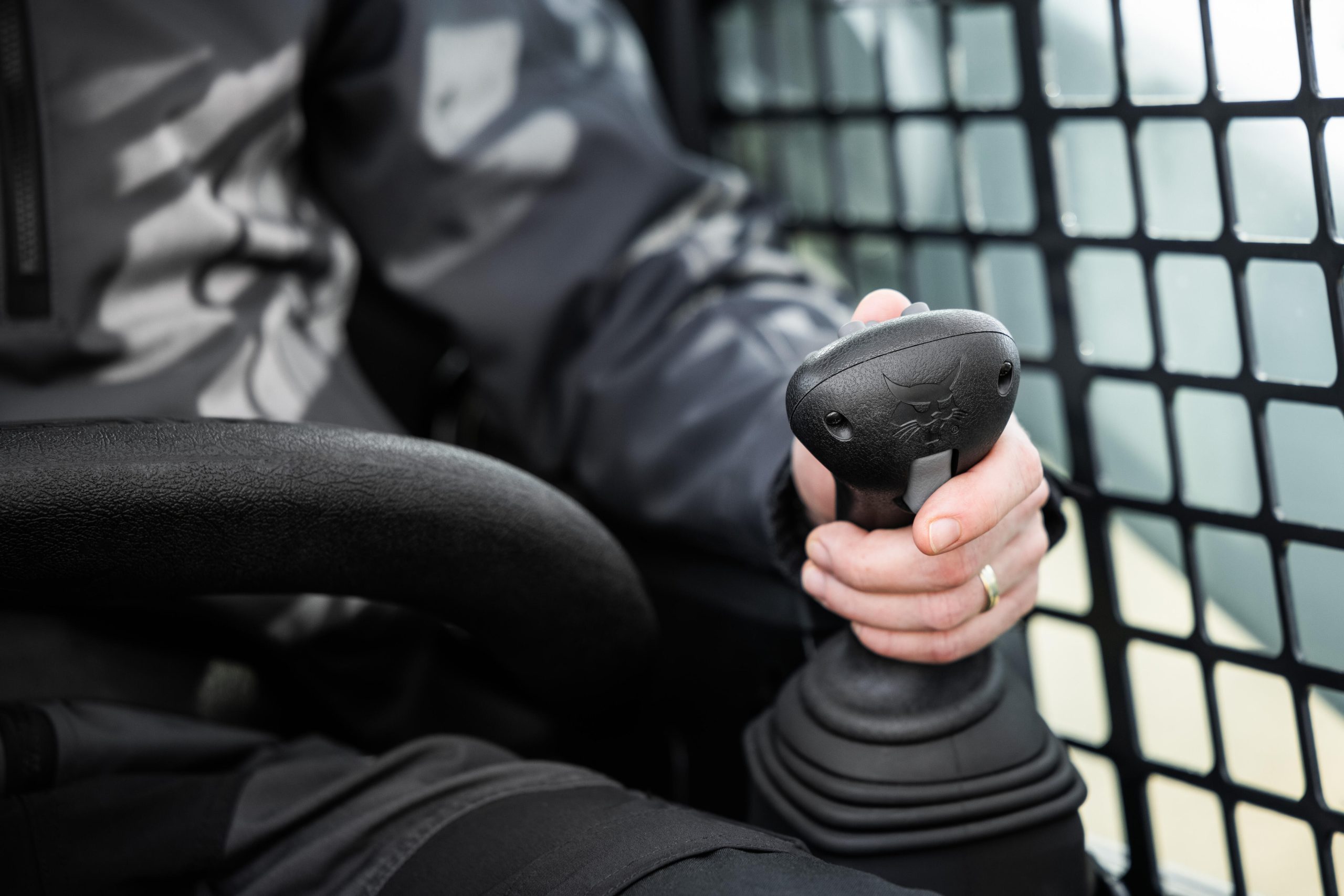

With options like Advanced Control System (ACS) and Selectable Joystick Control (SJC), operators can choose their preferred control setup for precision and comfort.
Equipped with a Kubota V3800-DI-T-E3 engine, the S770 delivers 68.6 kW of power, ensuring robust performance while maintaining fuel efficiency.

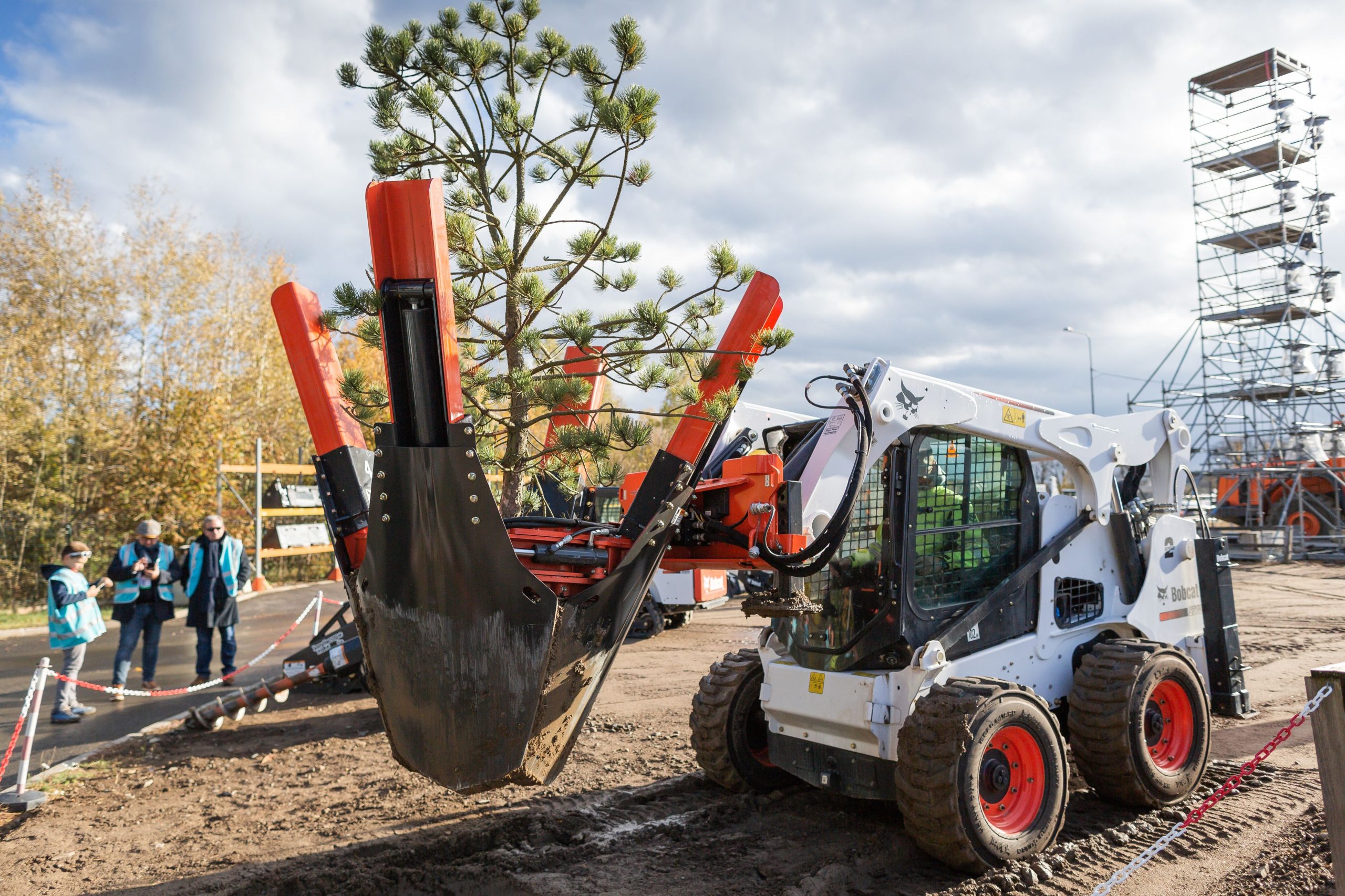

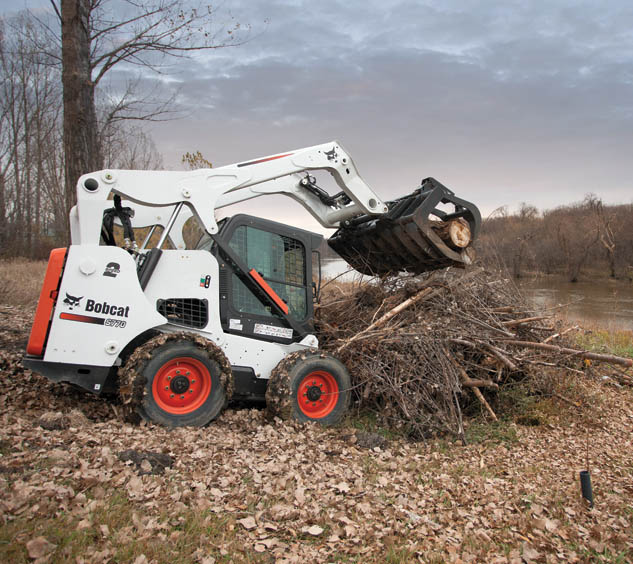

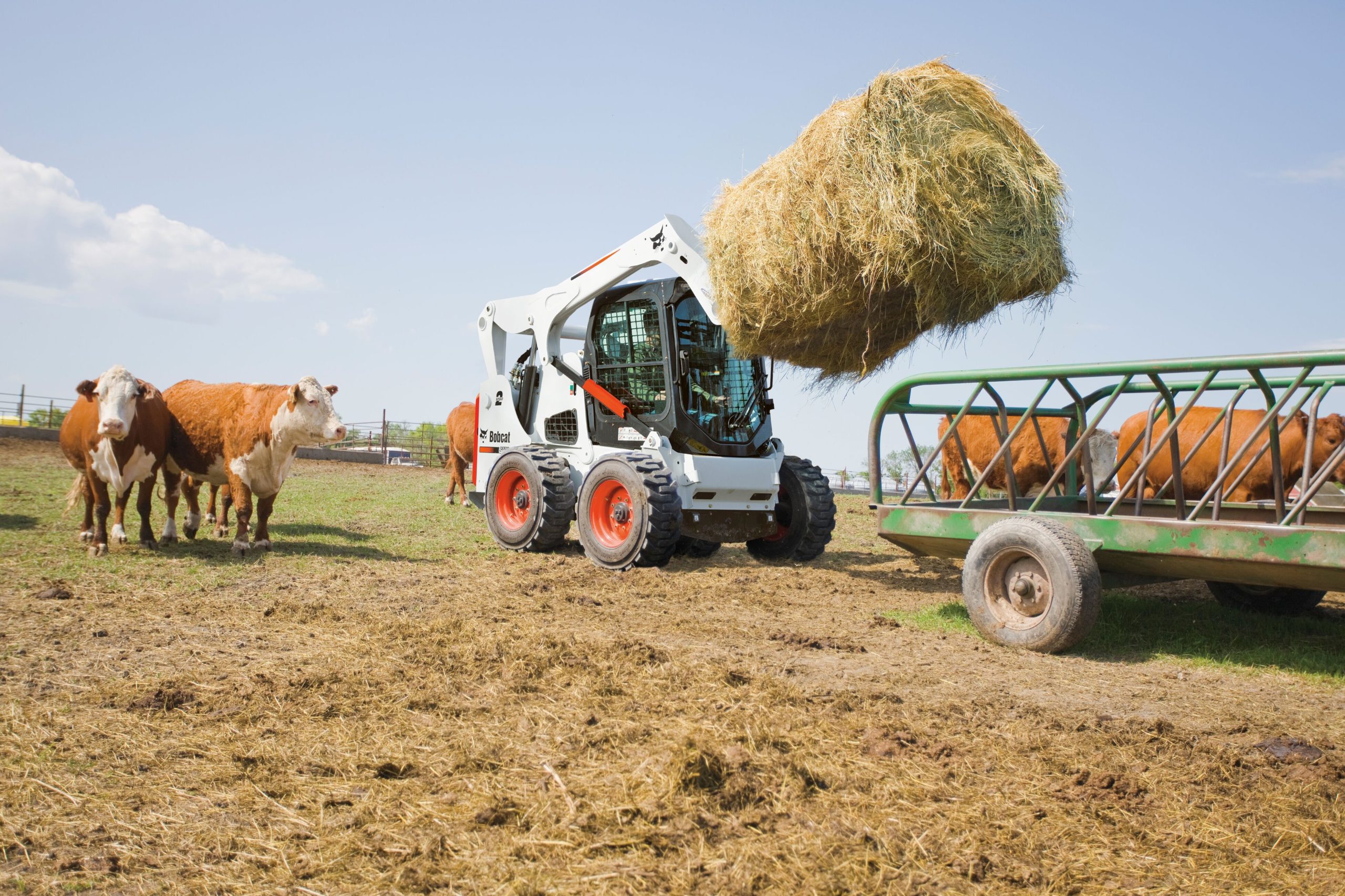

The S770 supports a wide range of attachments, from augers to snow blades, making it a versatile tool for multiple applications.
Features like a high-back adjustable suspension seat and deluxe operator cab ensure comfort and reduce fatigue during long working hours.
Rated operating capacity
1569 kgHorsepower
92 hpOperating weight
4162 kgTipping load (ISO 14397-1)
3137 kgRated operating capacity
1569 kgPump capacity
87 L/minPump capacity (with high ow option)
138 L/minSystem relief at quick couplers
23-24 MPaMax. travel speed (high range)
20 km/hMax. travel speed (low range)
11 km/hMake / Model
Kubota / V3800-DI-T-E3Engine Cooling
LiquidEngine Fuel
DieselHorsepower
92 hpTorque at 1600 RPM (SAE J1995 Gross)
315 NmNumber of cylinders
4Displacement
3769 cm3Fuel tank
111 LOperating weight
4162 kgShipping weight
3787 kgVehicle steering
Direction and speed controlled by two hand levers or joysticks (optional)Loader hydraulics tilt and lift
Separate foot pedals or optional Advanced Control System (ACS) or optional Advanced Hand Controls (AHC) or Selectable Joystick Control (SJC)Front auxiliary (standard)
Electrical switch on right-hand steering leverTransmission
In nitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motorsTwo-speed travel
ManualHigh-back adjustable suspension seat
Lift arm supportAutomatically activated air intake heater
Work lights, front and rearAuxiliary hydraulics: variable ow/maximum ow
Parking brakeBob-Tach™ frame
Cushioned lift and tilt cylindersBobcat Interlock Control System (BICS)
Seat barDeluxe operator cab1
12 x 16.5, 12–ply, Heavy duty tyresElectrically activated proportional front auxiliary
Turbo-charger with approved spark arrestorDeluxe instrument panel
Advanced Control System (ACS)Deluxe pressurized cab with heating
Advanced Hand Controls (AHC)High-Flow hydraulics
Selectable Joystick Controls (SJC)Air conditioning
Air ride seat with 3 point seat beltPower Bob-Tach™
Back-up alarm12 x 16.5, 12–ply, Bobcat heavy duty tyres, o set rims
Beacon33 x 15.5-16.5, 12–ply, Super otation tyres, o set rims
Engine block heater12 x 16.5, 12–ply, Severe duty tyres
Fire extinguisher12 x 16.5, Solid ex tyres
Strobe
