Product Overview
Unmatched Power and Versatility
The Bobcat T770 Compact Track Loader delivers exceptional performance and versatility for demanding tasks. Its robust design ensures reliability across various terrains and applications.
– High operating capacity
– Advanced control systems
– Deluxe operator cab
– Wide range of attachments

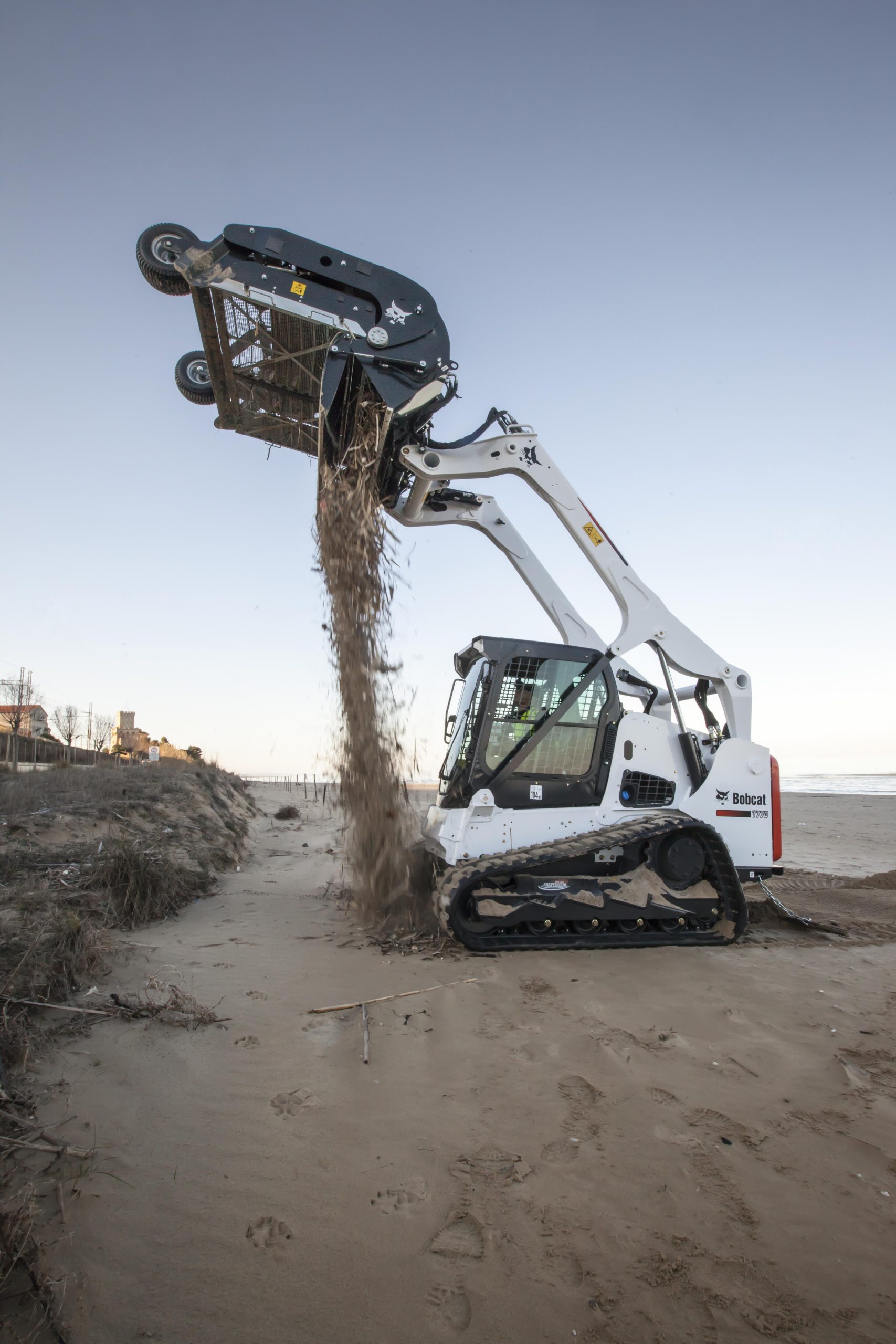

The T770 boasts a rated operating capacity of 1611 kg, allowing it to tackle large loads efficiently. Its tipping load capacity of 4602 kg ensures stability and safety during operation.
With options like the Advanced Control System (ACS) and Selectable Joystick Controls (SJC), operators can customize their control preferences for improved precision and comfort.

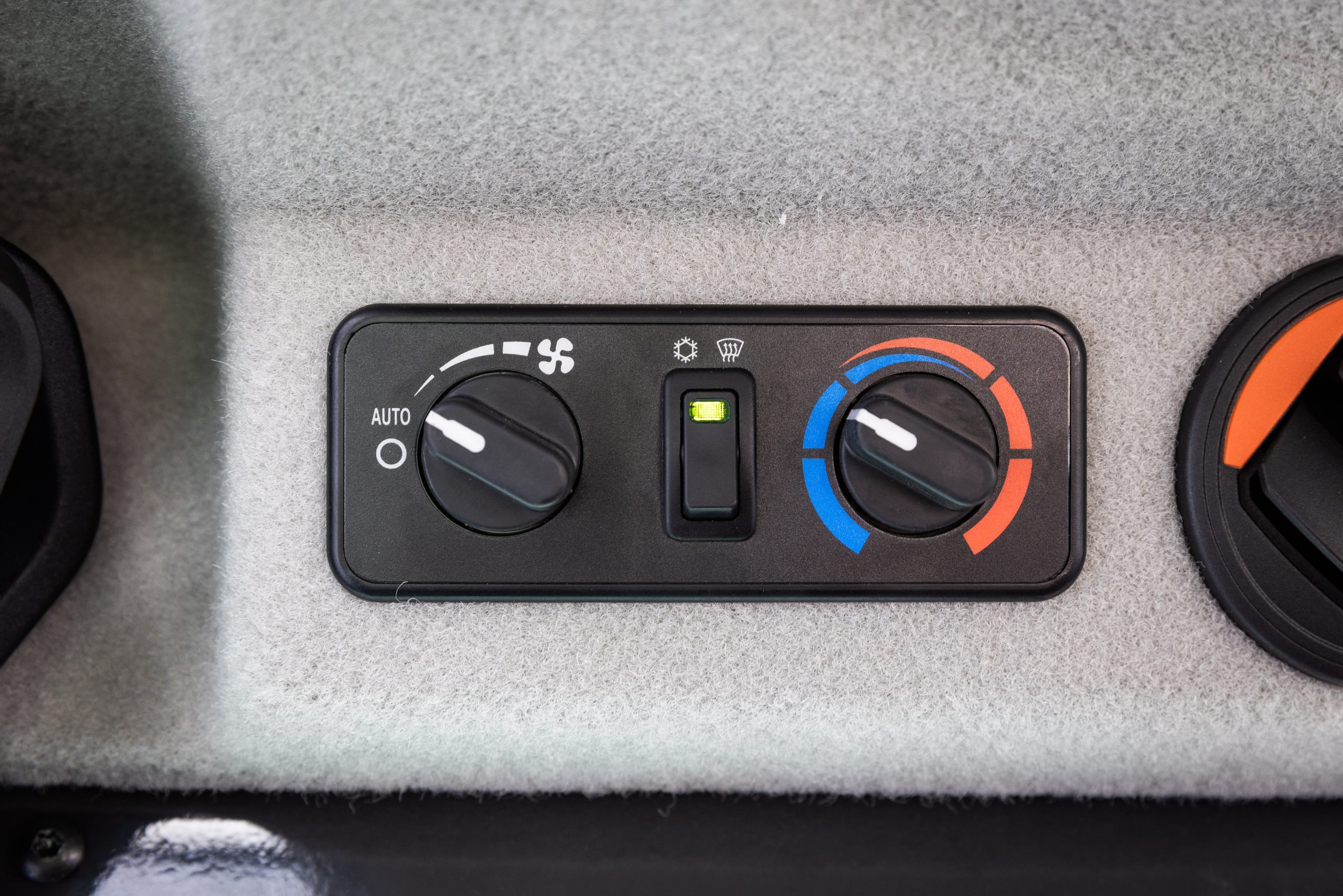

The deluxe operator cab includes top and rear windows, providing excellent visibility. Features like air conditioning and an air ride seat enhance operator comfort during long hours of operation.

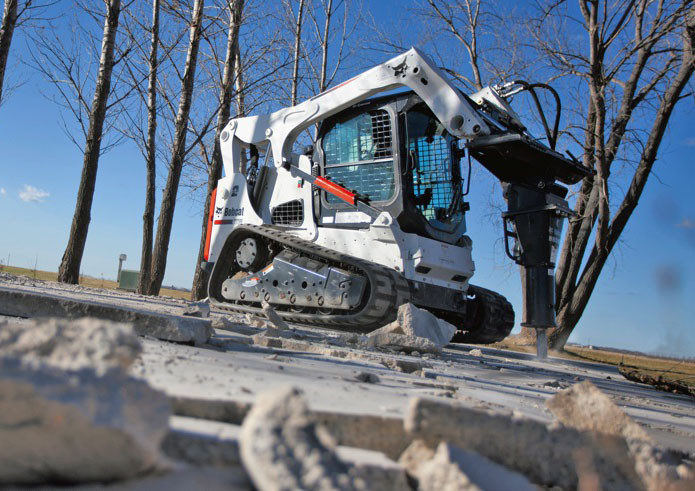

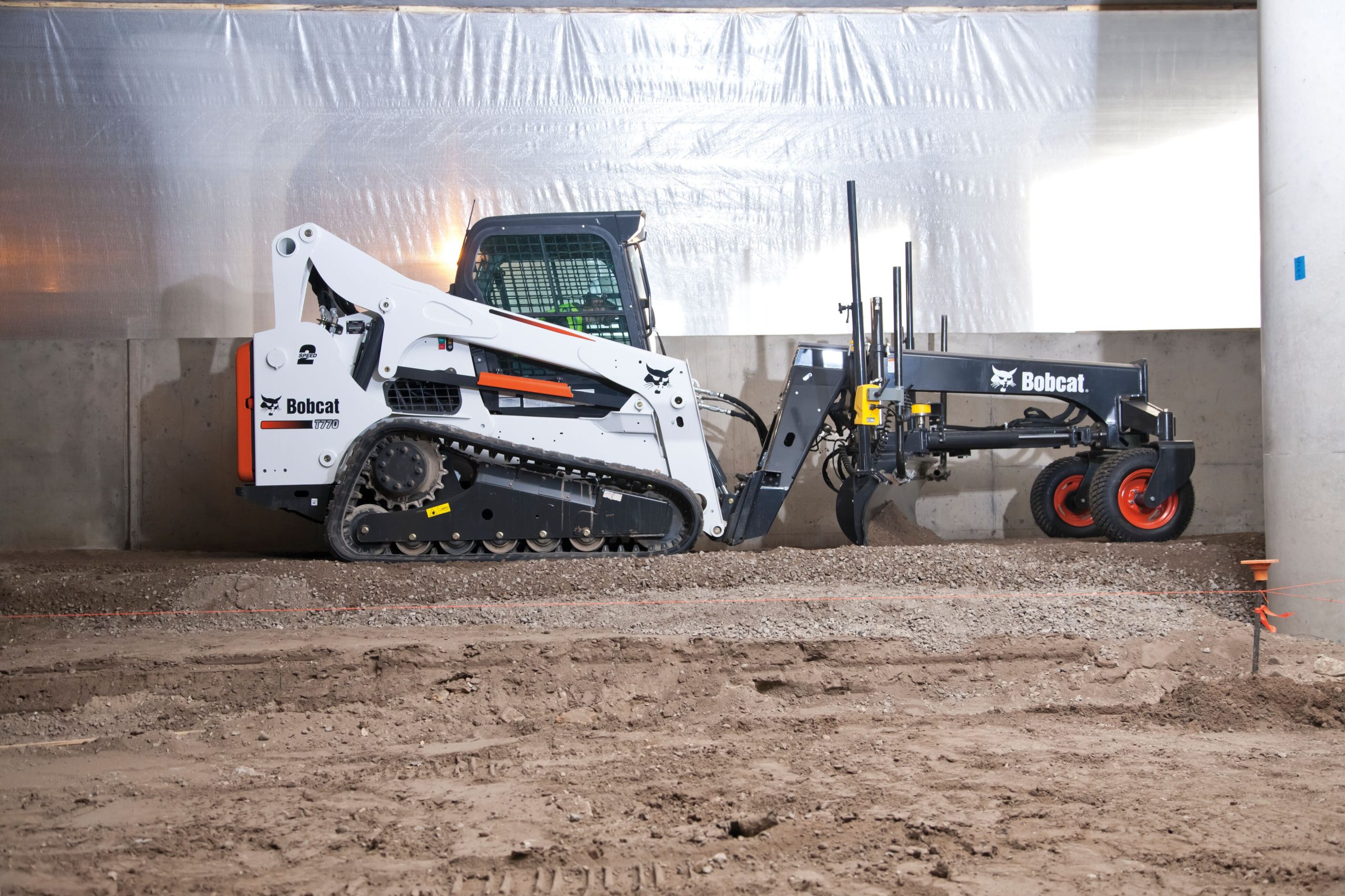

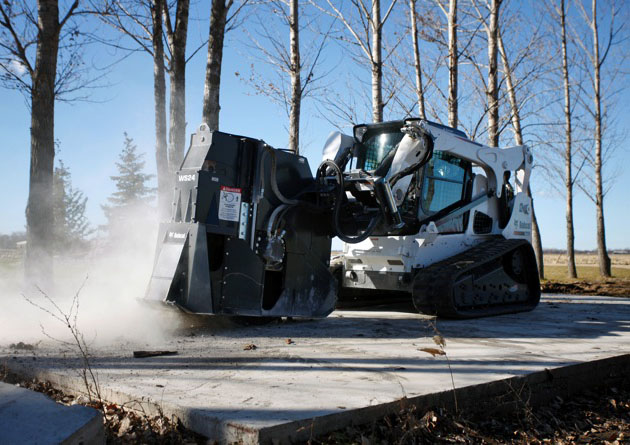

The T770 supports a wide range of attachments, including augers, breakers, and snow blades, making it suitable for construction, landscaping, and agricultural applications.

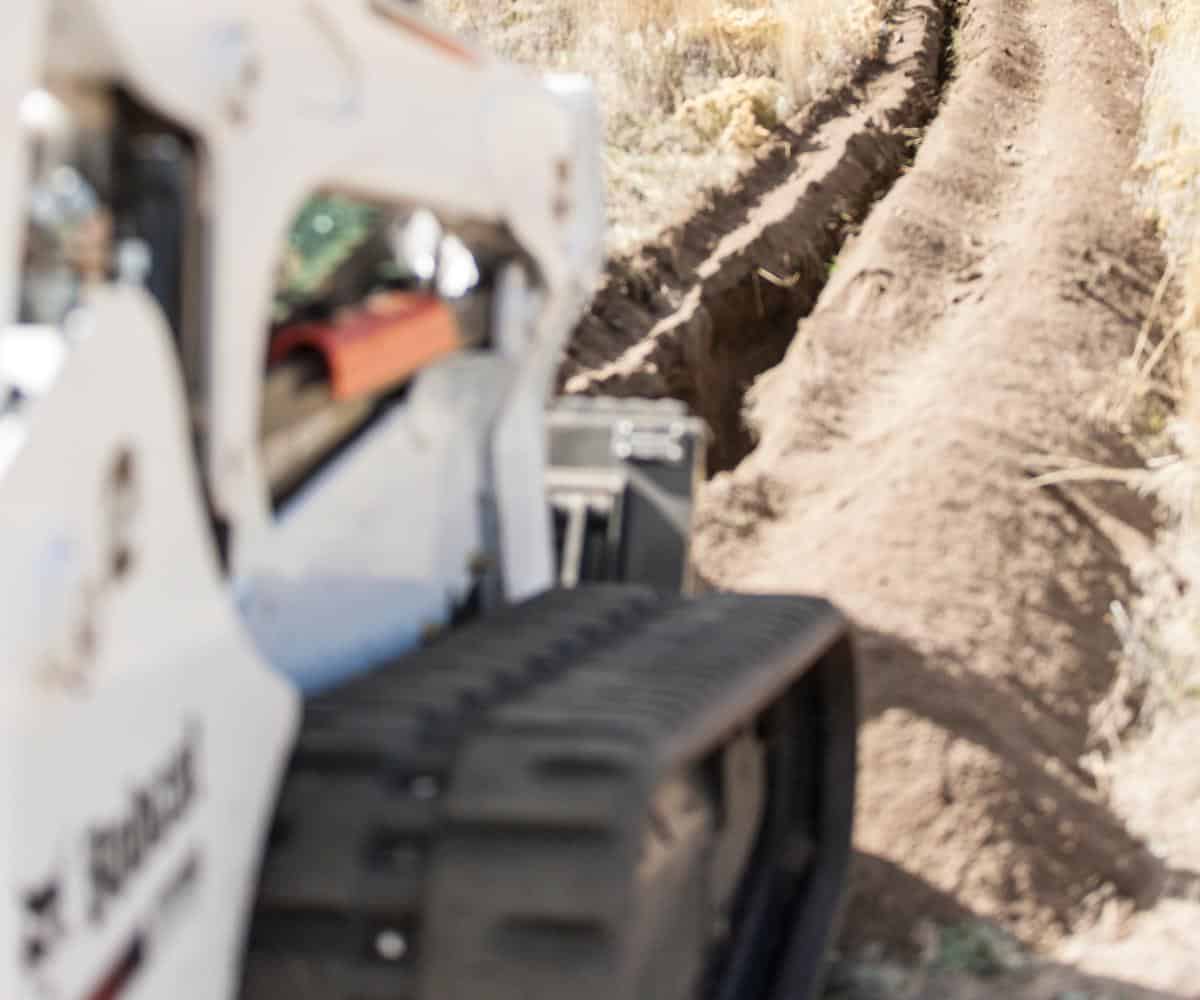

The hydrostatic transmission with fully reversing motors ensures smooth operation and precise control, enhancing productivity on the job site.
Rated operating capacity
1611 kgHorsepower
92 hpOperating weight
4683 kgRated operating capacity
1611 kgTipping load (ISO 14397-1)
4602 kgPump capacity
87.10 L/minPump capacity (with high ow option
138.00 L/minSystem relief at quick couplers
23.8-24.5 MPaMax. travel speed
10.7 km/hMax. travel speed (high range – optional
17.2 km/hMake/Model
Kubota /V3800-DI-T-E3Engine Cooling
LiquidEngine Fuel
DieselHorsepower
92 hpTurbocharged Engine
YesMaximum power at 2400 RPM (SAE J1995
92Torque at 1600 RPM (SAE J1995 Gross
315.0Number of cylinders
4Displacement
3769 cm3Fuel tank
166.40 LOperating weight
4683 kgShipping weight
4300 kgVehicle steering
Direction and speed controlled by two hand levers or joysticks (optional)Loader hydraulics tilt and lift
Separate foot pedals, optional Advanced Control System (ACS) or Selectable Joystick Controls (SJC)Front auxiliary (standard)
Electrical switch on right-hand steering levernoissimsnarT
Infinitely variable pumps, driving tandemhydrostatic piston two fully reversing hydrostatic motorsCushion suspension seat
Work lights, front and rearAuxiliary hydraulics: variable ow/maximum ow
Parking brakeBob-Tach™ frame
Seat beltBobcat Interlock Control System (BICS)
Seat barDeluxe operator cab, includes top and rear window 1
Turbo-charger with approved spark arrestorInstrumentation
Tracks — rubber — 450 mmDeluxe instrument panel
Roller Suspension™Power Bob-Tach™
Air ride seat with 3 point seat beltHydraulic bucket positioning (including ON/OFF switch)
Back-up alarmCab enclosure with heating
BeaconHigh-flow auxiliary hydraulics
Engine block heaterAir conditioning
Fire extinguisherAdvanced Control System (ACS)
Strobe
